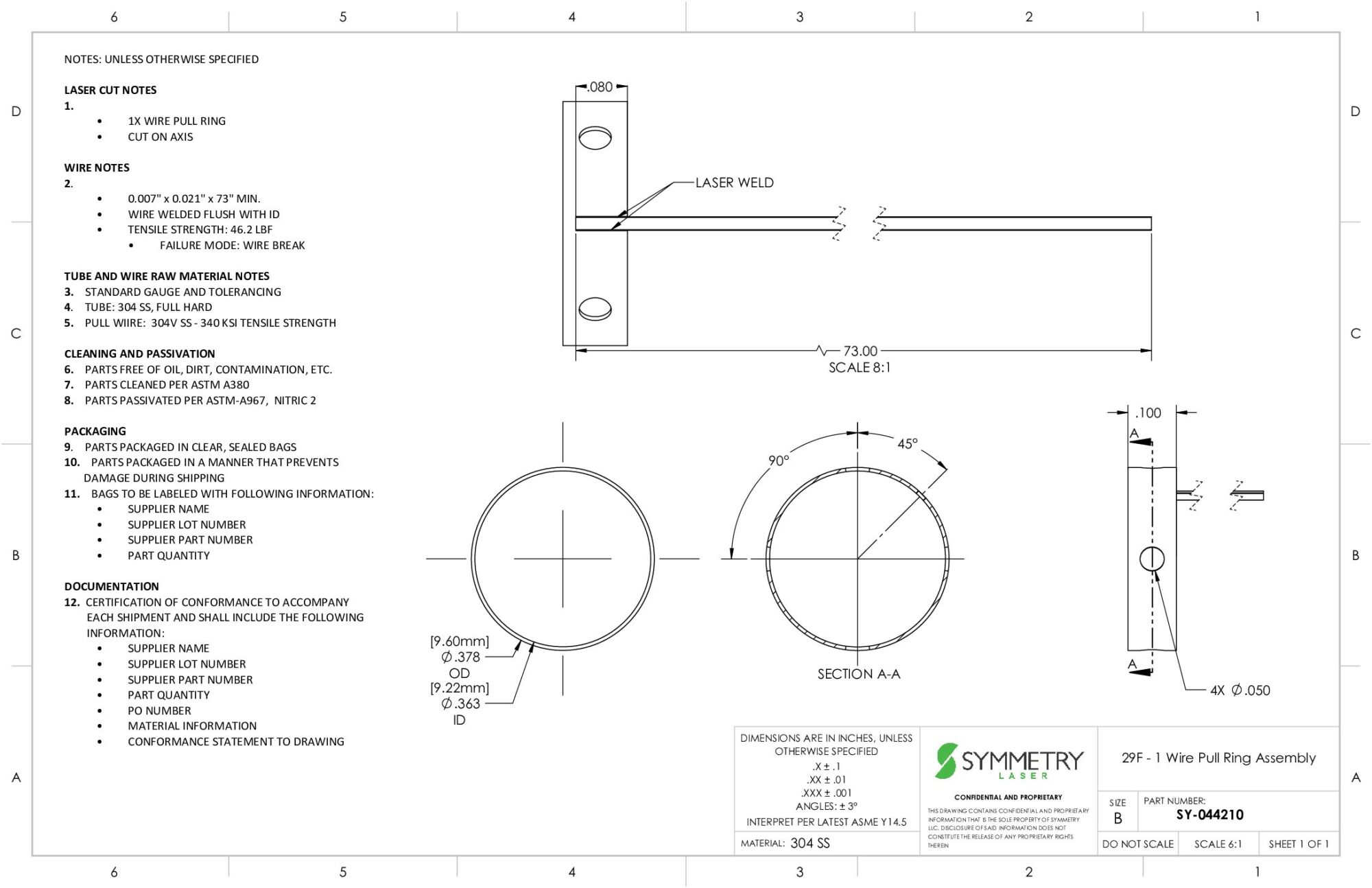

304 Stainless Steel, Pull Ring Assembly, 1 Wire, 0.007 x 0.021 Wire Size, 29 Fr, 73" Length
$200.00
3/bag
In-Stock: 100
Ships in 1-2 business days
Product Details
| Pull Ring Material | 304 SS |
|---|---|
| Pull Ring OD (in) | 0.378 |
| French Size | 29 |
| Pull Ring ID (in) | 0.3632 |
| Wall Thickness (in) | 0.0074 |
| Pull Ring Length (in) | 0.1 |
| # Pull Wires | 1 |
| Pull Wire Size (in) | 0.007 x 0.021 |
| Pull Wire Length (in) | 73 |
| Min Pull Force (LBF) | 46.2 |
| Packaging | 3/bag |
| Shipping Dimensions | 15 × 15 × 4 in |
| Shipping Weight | 2 lbs |
Product Description
This 304 stainless steel single wire pull ring assembly features a 0.007 x 0.021 inch wire size and 73-inch length, ideal for steerable catheter prototyping. The assembly includes a precision laser-cut ring for secure attachment in medical device builds. Packaged in convenient 3-piece bags, its design ensures reliable instrument movement and flexibility for bench-top development. This catalog stainless steel pull wire assembly for steerable catheter prototype offers excellent value for lab R&D applications.
