304 Stainless Steel, Pull-Wire Assembly, 2 Wire, 0.01 in OD, 55 in Length
$150.00
1/bag
In-Stock: 7
Ships in 1-2 business days
Product Details
| Pull Ring Material | 304 SS |
|---|---|
| Pull Ring OD (in) | 0.259 |
| Pull Ring ID (in) | 0.229 |
| Pull Ring Length (in) | 0.2 |
| # Pull Wires | 2 |
| Pull Wire OD (in) | 0.01 |
| Pull Wire Length (in) | 55 |
| Min Pull Force (lbs) | 8 |
| Packaging | 1/bag |
| Shipping Dimensions | 60 × 2 × 2 in |
| Shipping Weight | 2 lbs |
Product Description

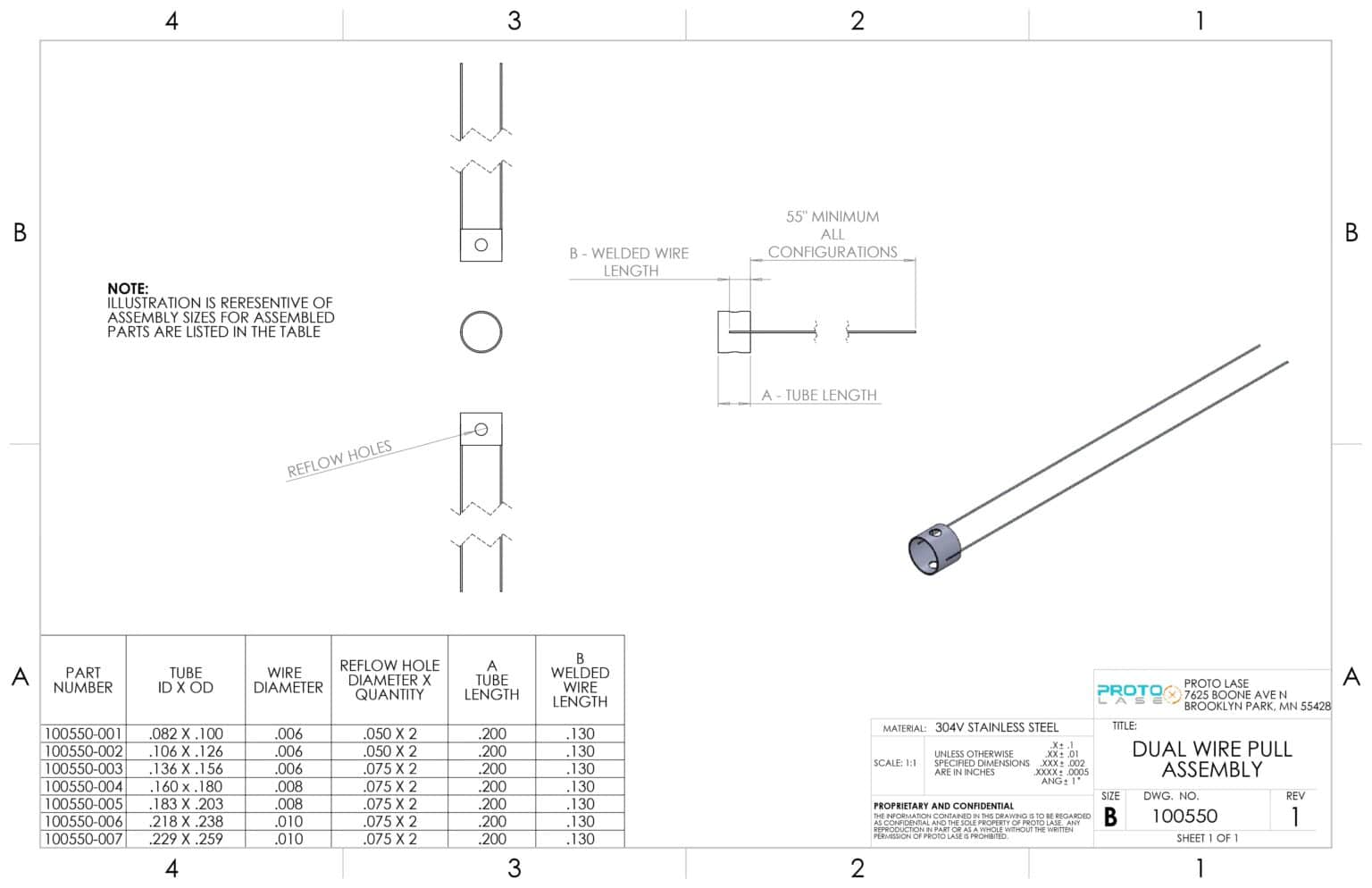

This 304 stainless steel multi-wire pull wire assembly features two 0.259″ OD ring termination wires with a 55″ working length, ideal for steerable catheter prototype development and medical device assembly. The dual-wire configuration provides enhanced movement control and flexibility for complex instrument navigation requirements. Each assembly comes individually bagged for convenient handling and storage in laboratory environments. This catalog stainless steel pull wire assembly supports rapid R&D iterations. The ring termination design ensures secure attachment points for reliable bench-top builds and surgical instrument development. This in-stock cable assembly delivers consistent performance for device movement systems and prototype validation.
