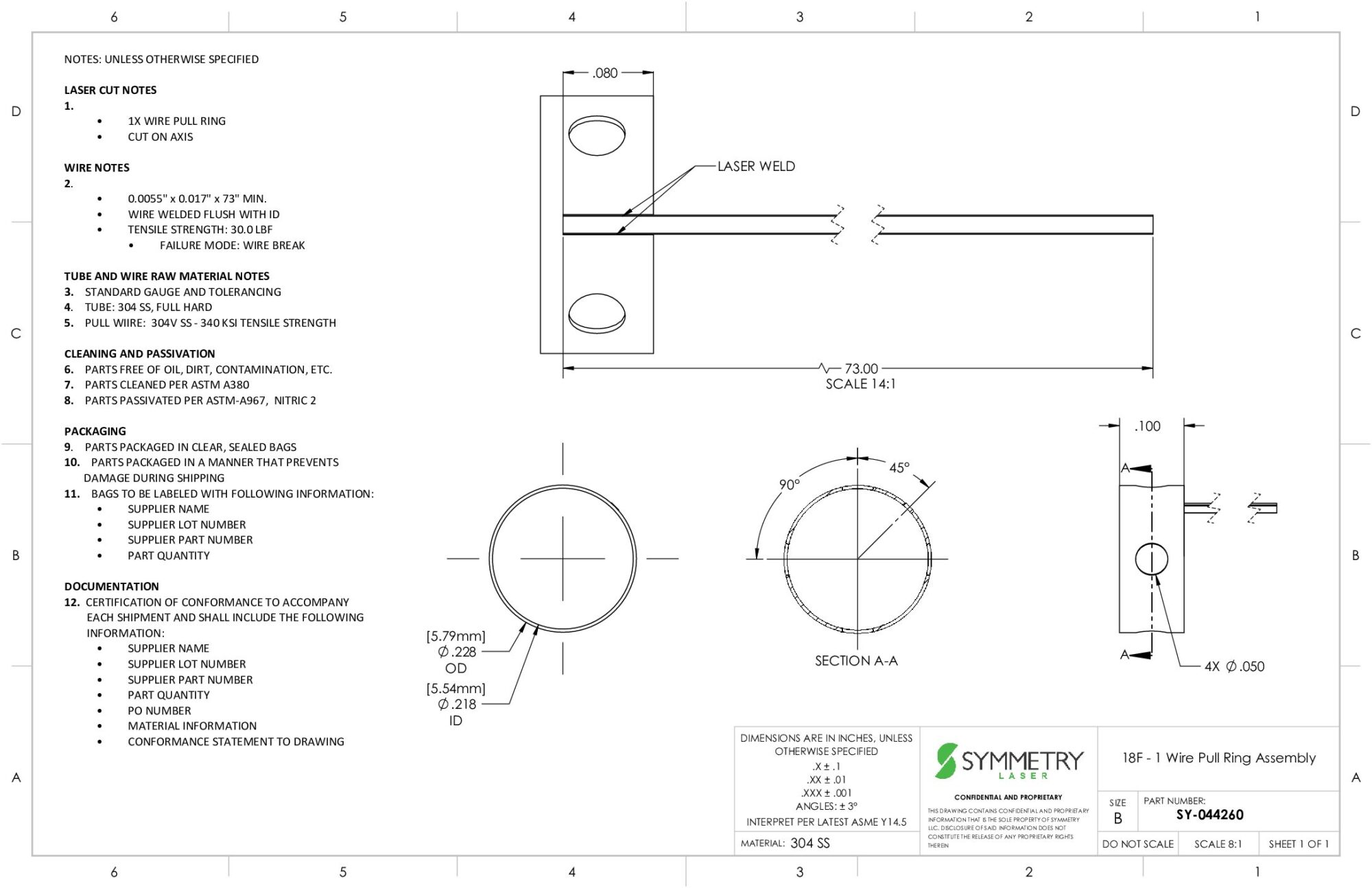

304 Stainless Steel, Pull Ring Assembly, 1 Wire, 0.0055 x 0.017 Wire Size, 18 Fr, 73" Length
$250.00
3/bag
In-Stock: 100
Ships in 1-2 business days
Product Details
| Pull Ring Material | 304 SS |
|---|---|
| Pull Ring OD (in) | 0.228 |
| French Size | 18 |
| Pull Ring ID (in) | 0.218 |
| Wall Thickness (in) | 0.005 |
| Pull Ring Length (in) | 0.1 |
| # Pull Wires | 1 |
| Pull Wire Size (in) | 0.0055 x 0.017 |
| Pull Wire Length (in) | 73 |
| Min Pull Force (LBF) | 30 |
| Packaging | 3/bag |
| Shipping Dimensions | 15 × 15 × 4 in |
| Shipping Weight | 2 lbs |
Product Description
This 304 stainless steel single wire pull ring assembly features a 0.0055 x 0.017 inch wire size with a 73-inch length, designed for steerable catheter prototyping and medical device development. The assembly provides exceptional movement control and flexibility for complex instrument navigation requirements. Packaged in convenient 3-unit bags, this pull wire supports rapid R&D iterations and bench-top engineering builds. With its precise ring termination and fatigue-resistant construction, this catalog stainless steel pull wire assembly ensures reliable performance in surgical and laboratory applications. The cleaned finish and standardized dimensions offer excellent value for medical device assembly.
