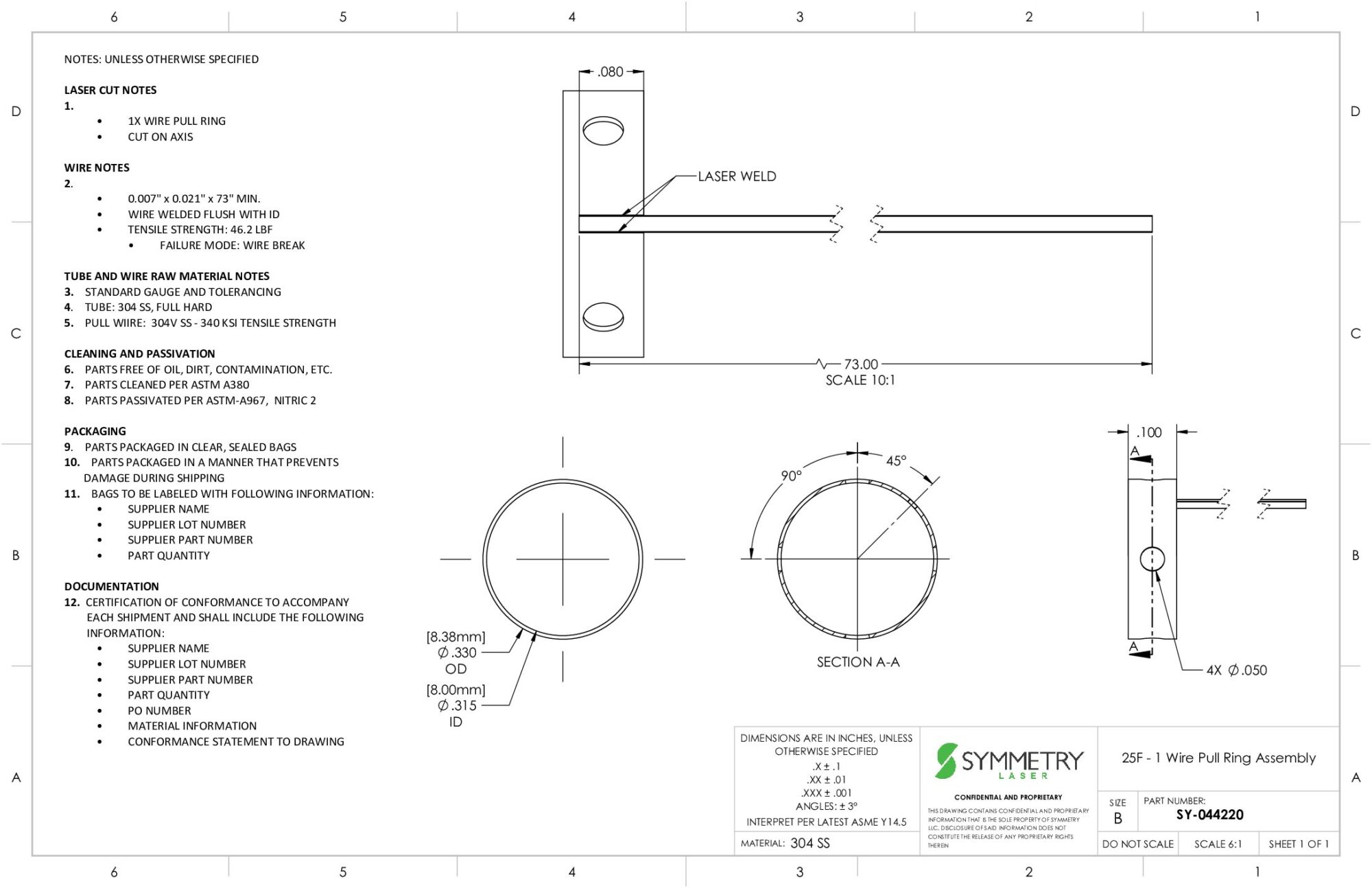

304 Stainless Steel, Pull Ring Assembly, 1 Wire, 0.007 x 0.021 Wire Size, 25 Fr, 73" Length
$250.00
3/bag
In-Stock: 100
Ships in 1-2 business days
Product Details
| Pull Ring Material | 304 SS |
|---|---|
| Pull Ring OD (in) | 0.33 |
| French Size | 25 |
| Pull Ring ID (in) | 0.315 |
| Wall Thickness (in) | 0.0074 |
| Pull Ring Length (in) | 0.1 |
| # Pull Wires | 1 |
| Pull Wire Size (in) | 0.007 x 0.021 |
| Pull Wire Length (in) | 73 |
| Min Pull Force (LBF) | 46.2 |
| Packaging | 3/bag |
| Shipping Dimensions | 15 × 15 × 4 in |
| Shipping Weight | 2 lbs |
Product Description
This 304 stainless steel single wire pull ring assembly features a 0.007 x 0.021 inch wire diameter and 73-inch length for precise instrument movement in steerable catheter prototypes. The cleaned finish ensures optimal performance in surgical and lab environments, while the ring configuration provides secure attachment points for device assembly. Its high flexibility and fatigue resistance make it ideal for bench-top builds requiring reliable pull wire functionality. This catalog stainless steel pull wire assembly delivers exceptional value for medical device prototyping and laboratory research applications.
