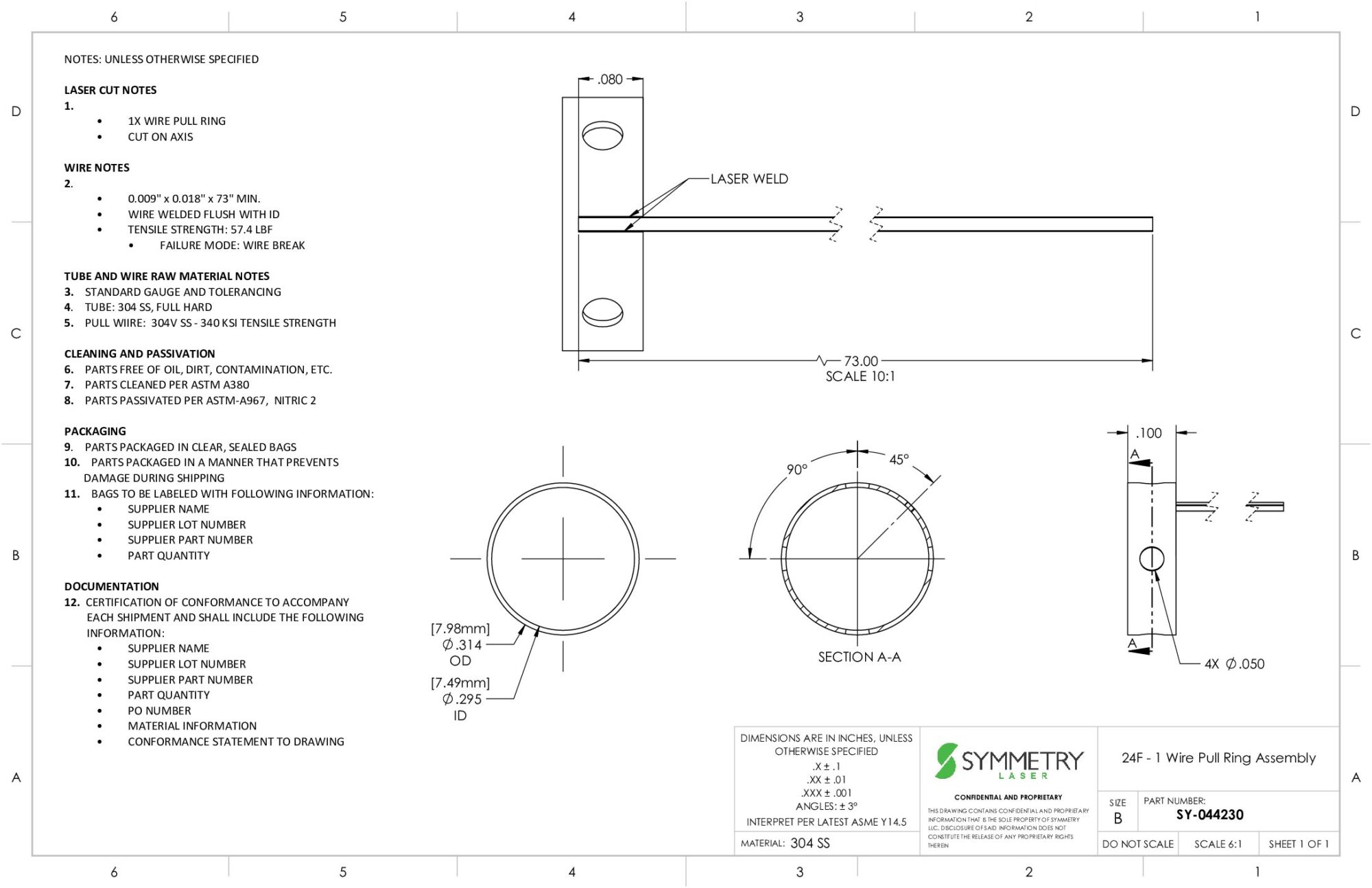

304 Stainless Steel, Pull Ring Assembly, 1 Wire, 0.009 x 0.018 Wire Size, 24 Fr, 73" Length
$250.00
3/bag
In-Stock: 100
Ships in 1-2 business days
Product Details
| Pull Ring Material | 304 SS |
|---|---|
| Pull Ring OD (in) | 0.314 |
| French Size | 24 |
| Pull Ring ID (in) | 0.295 |
| Wall Thickness (in) | 0.0095 |
| Pull Ring Length (in) | 0.1 |
| # Pull Wires | 1 |
| Pull Wire Size (in) | 0.009 x 0.018 |
| Pull Wire Length (in) | 73 |
| Min Pull Force (LBF) | 57.4 |
| Packaging | 3/bag |
| Shipping Dimensions | 15 × 15 × 4 in |
| Shipping Weight | 2 lbs |
Product Description
This 304 stainless steel single wire pull ring assembly features a 0.009 x 0.018 inch wire size with a 73-inch length, ideal for steerable catheter prototyping and medical device development. The precision laser-cut ring termination ensures reliable performance in demanding R&D applications requiring controlled instrument movement. Supplied in convenient 3-piece bags, this pull wire assembly offers excellent flexibility and fatigue resistance for repeated testing cycles. Engineers value this catalog stainless steel pull wire assembly for steerable catheter prototype development and bench-top medical device builds. The assembly provides consistent movement characteristics essential surgical instrument development.
