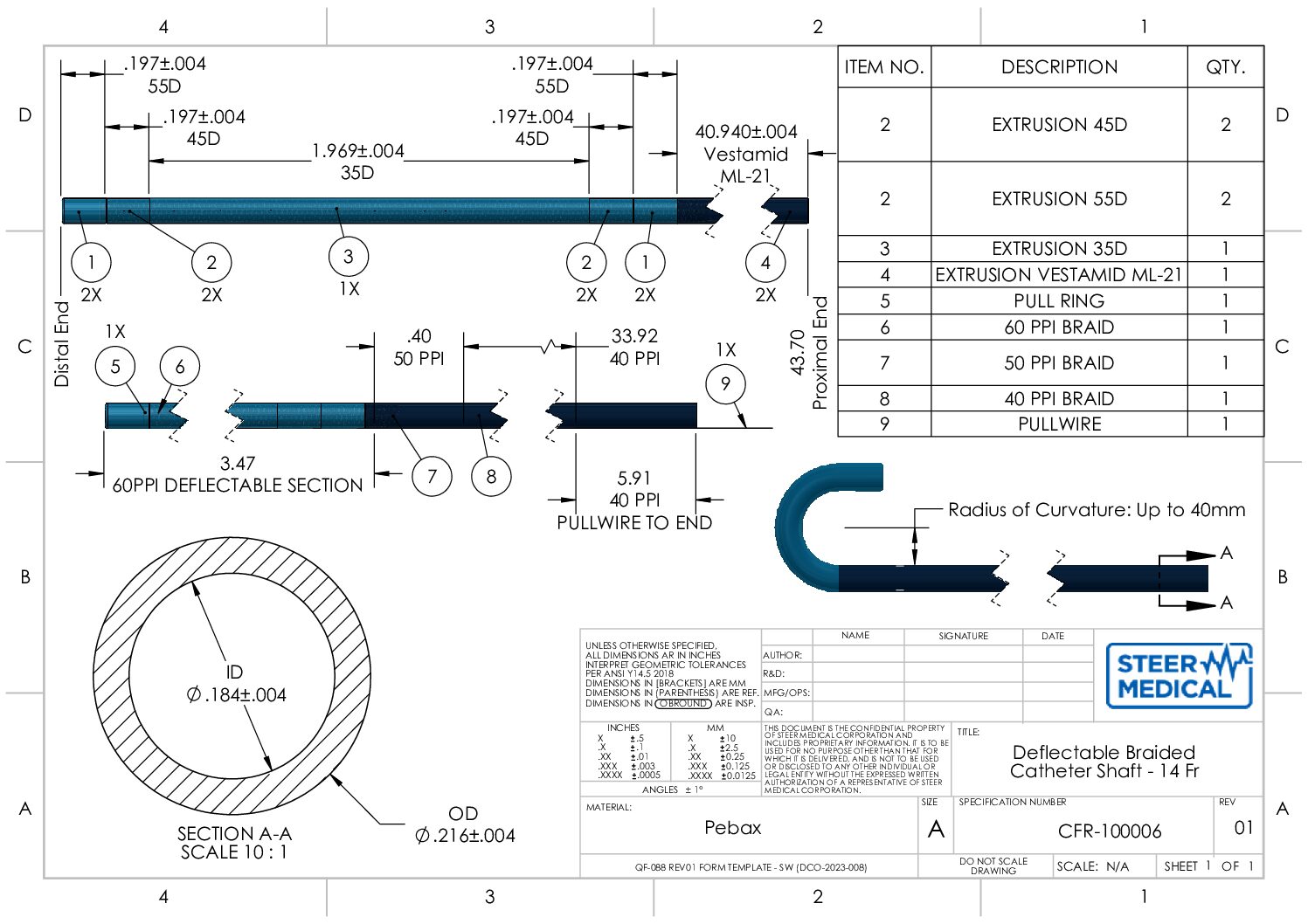

Braided Deflectable Catheter Shaft, Baby Blue, PTFE Lined, 60 PPI Distal Deflectable, 50PPI Transition, 40PPI Proximal, 14 F, 0.184" ID, 0.216" OD, 43.7" Length
$825.00
1/bag
In-Stock: 15
Ships in 1-2 business days
Product Details
| ID (in) | 0.184 |
|---|---|
| ID Tolerance (in) | 0.004 |
| OD (in) | 0.216 |
| Wall Thickness (in) | 0.016 |
| PPI | 40 Proximal, 50 Transition, 60 Distal |
| Material | Pebax |
| Length (in) | 43.7 |
| Inner Liner Material | PTFE Liner |
| Distal Tip | Pebax 55D Tip 0.197? length |
| Flex Zone | 35D Flex 2.757? length, 45D, 55D |
| Proximal Section | Vestamid ML21 |
| Color | Baby Blue |
| Wire Size | 0.001" x 0.005" flat wire |
| Wire Material | 304 SS |
| French Size | 14 |
| Tubing Type | Deflectable Shaft |
| Catheter Type | Deflectable Braided Catheter Shaft |
| Packaging | 1/bag |
| Shipping Dimensions | 73 × 4 × 4 in |
| Shipping Weight | 1 lbs |
Product Description
This medical grade polymer tubing features a braided deflectable catheter shaft with a PTFE liner for exceptional lubricity and chemical resistance. The variable braid density (40 PPI proximal, 50 transition, 60 distal) provides progressive flexibility control, while the Pebax construction with Vestamid ML21 proximal section ensures reliable torque response. The baby blue color aids in visual identification during procedures, and the 304 stainless steel flat wire reinforcement delivers kink resistance without compromising maneuverability. Ideal for medical device prototyping and OEM assemblies requiring precise deflection capabilities in fluid transfer applications.
