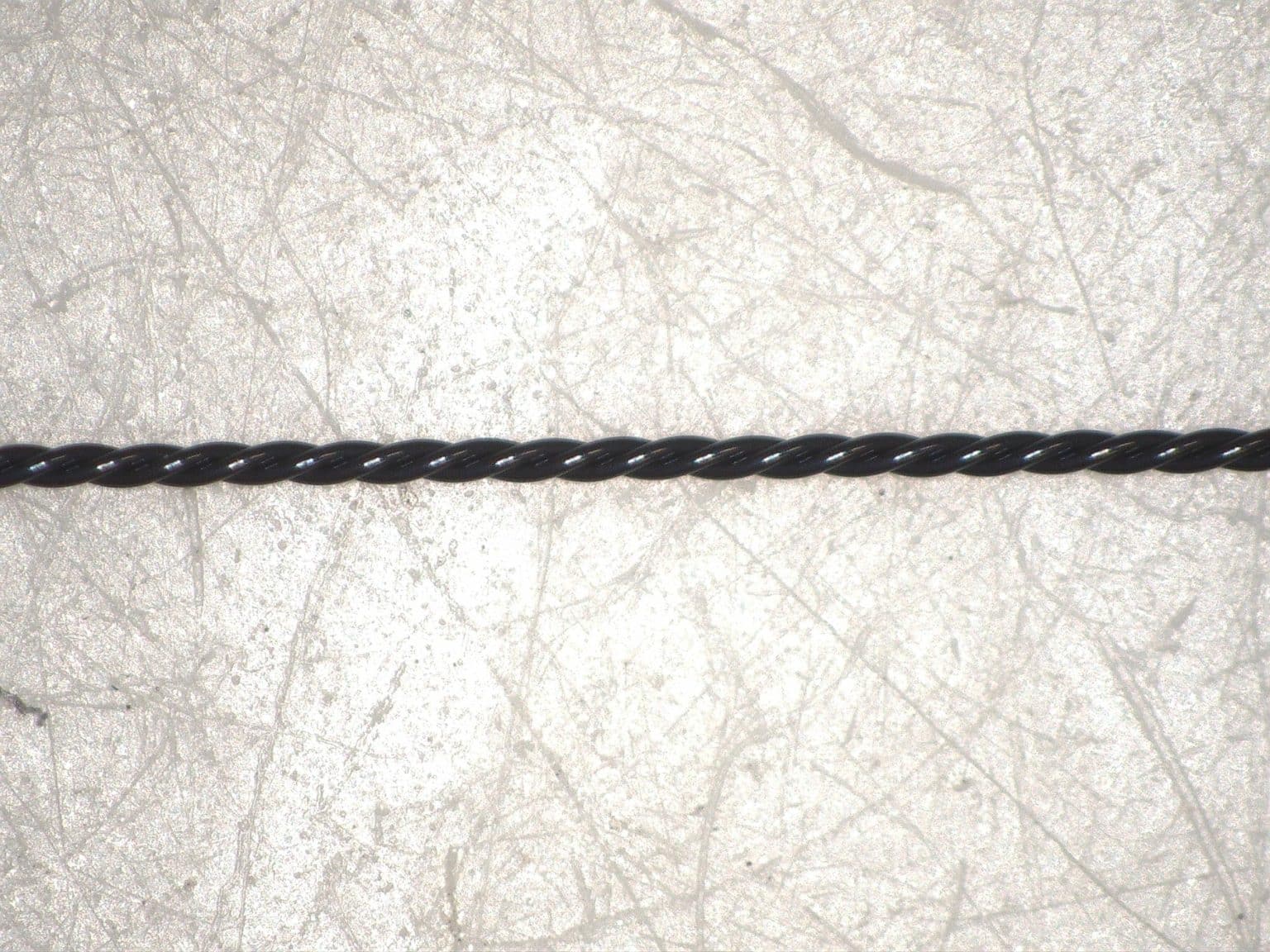

Nitinol Twisted Strand, 3 - AWG (0.0091" OD, 0.23 mm OD), 3.280833333 ft Length
$85.00
1/bag
In-Stock: Out of stock
Ships in 1-2 business days
Want to be notified when this product is back in stock?
Request custom quote
Don't want to wait, submit an RFQ and get your ordered started today.
Product Details
| OD (in) | 0.0091 |
|---|---|
| OD Tolerance (in) | 0.0004 |
| Length (in) | 39.37 |
| Length (ft) | 3.280833333 |
| Surface Finish | Blue Oxide |
| Material | Nitinol |
| Material Detail | Nitinol Superelastic Blue Oxide |
| Wire Type | Twisted Strand |
| Construction | 3 Round Wires |
| Packaging | 1/bag |
| Note | Not For Human Use |
| Company Note | Alleima acquired Endosmart in 2022 |
| Shipping Dimensions | 10.2 × 8.6 × 6.7 in |
| Shipping Weight | 1 lbs |
Product Description
Nitinol twisted strand wire is designed for medical device applications requiring superelastic properties. This wire features a three-strand twisted construction with a 0.23 mm outer diameter and blue oxide surface finish. The wire maintains precise dimensional control with an OD tolerance of 0.0004 inches and is supplied in 39.37-inch lengths. Its superelastic nitinol composition provides excellent shape memory and fatigue resistance characteristics. Each wire is individually packaged in single-unit bags for convenient handling and inventory control. This product is specifically designated as not for human use in medical applications. The wire ships within 1-2 business days to support rapid prototyping and development timelines.
