Braided Deflectable Catheter Shaft, Baby Blue, PTFE Lined, 65 PPI Distal Deflectable, 50PPI Transition, 40PPI Proximal, 6.2 F, 0.081" ID, 0.110" OD, 43.7" Length
$825.00
1/bag
In-Stock: 12
Ships in 1-2 business days
Product Details
| ID (in) | 0.081 |
|---|---|
| ID Tolerance (in) | 0.004 |
| OD (in) | 0.11 |
| Wall Thickness (in) | 0.0145 |
| PPI | 40 Proximal, 50 Transition, 65 Distal |
| Material | Pebax |
| Length (in) | 43.7 |
| Inner Liner Material | PTFE Liner |
| Distal Tip | Pebax 55D Tip 0.197? length |
| Flex Zone | 35D Flex 2.757? length, 45D, 55D |
| Proximal Section | Vestamid ML21 |
| Color | Baby Blue |
| Wire Size | 0.001" x 0.003" flat wire |
| Wire Material | 304 SS |
| French Size | 6.2 |
| Tubing Type | Deflectable Shaft |
| Catheter Type | Deflectable Braided Catheter Shaft |
| Packaging | 1/bag |
| Shipping Dimensions | 73 × 4 × 4 in |
| Shipping Weight | 1 lbs |
Product Description

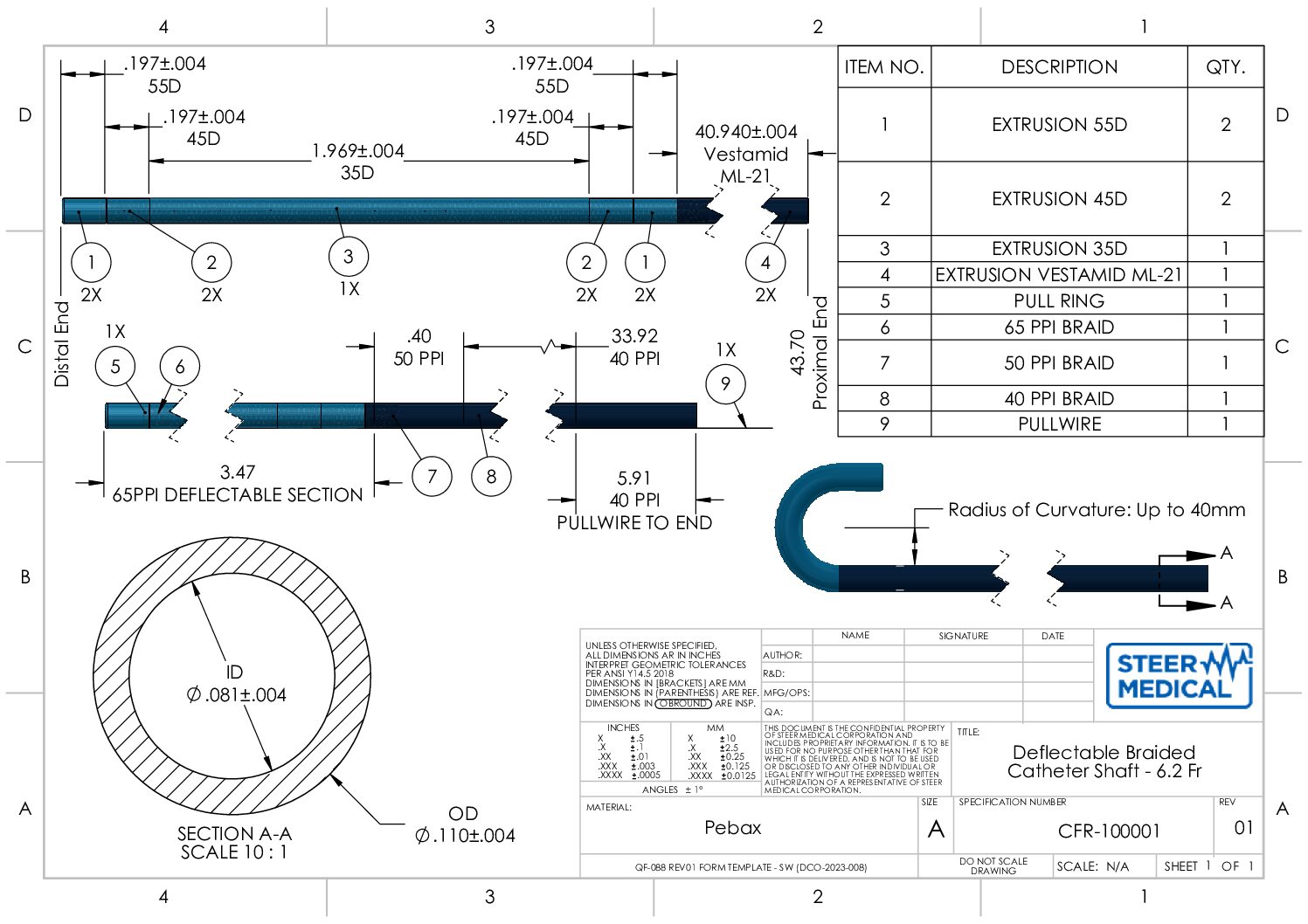

This deflectable braided catheter shaft features a PTFE liner for low friction and a baby blue Pebax outer layer with variable braid density (40-65 PPI) for controlled flexibility. The 304 stainless steel flat wire reinforcement provides kink resistance and torque response, while the graduated durometer zones (35D-55D) enable precise distal deflection. Medical grade polymer construction ensures chemical inertness and sterilization compatibility for R&D and prototyping applications. The 6.2 French profile supports minimally invasive navigation in complex anatomical pathways.
