Hot-Flo Heat Box with Standard Vertical U-Type Nozzle Open Port
$5,762.00
1/bag
In-Stock: 4
Ships in 1-2 business days
Product Details
| Tools Type | Hot Box |
|---|---|

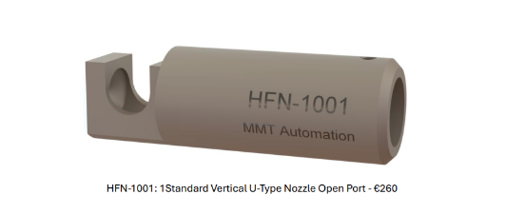

| Nozzle Size | Standard Vertical U-Type Nozzle Open Port HFN-1001 |
| Air Requirement | Min 60psi – Max 125psi |
| Power | 110V AC |
| Temperature Range | Ambient – 370°C (700°F) |
| Packaging | 1/bag |
| Shipping Dimensions | 26 × 4 × 4 in |
| Shipping Weight | 25 lbs |
Product Description
MMT’s Somex Automation Hot-Flo Heat Box is a benchtop Catheter Hot Air Nozzle System. The Heat Box features a digital readout of airflow, a ready lamp for temperature and airflow, and options for enhanced control and monitoring of process parameters.
Key Features:
- Accurate Digital Air Flow Controller with adjustment for precise air delivery to the nozzle for greater product build repeatability.
- Ready lamp to indicate the temperature and air flow are within set limits.
- CE-marked with high accuracy temperature control.
- Variety of heater design options with adjustable V-Groove Tooling to aid the product builder in locating the product in the nozzle for repeatable results.
- Foot-operated cooling air blow nozzle.
Specifications:
- Air: Min 60psi – Max 125psi
- Power: 110V AC, 60Hz or 230V AC, 50Hz
- Nominal Current: 0.75kVA
- Machine Footprint: Umbilical Configuration: 300mm x 150mm x 227mm (12? x 6? x 9?)
- Machine Weight: 5kg (11lbs)
- Temperature Range: Ambient – 370°C (700°F)
- Air Flow Range: 7-30L/min (15 – 64 SCFH)
- Air Pressure Range: 0 – 90psi (0 – 6 Bar)
