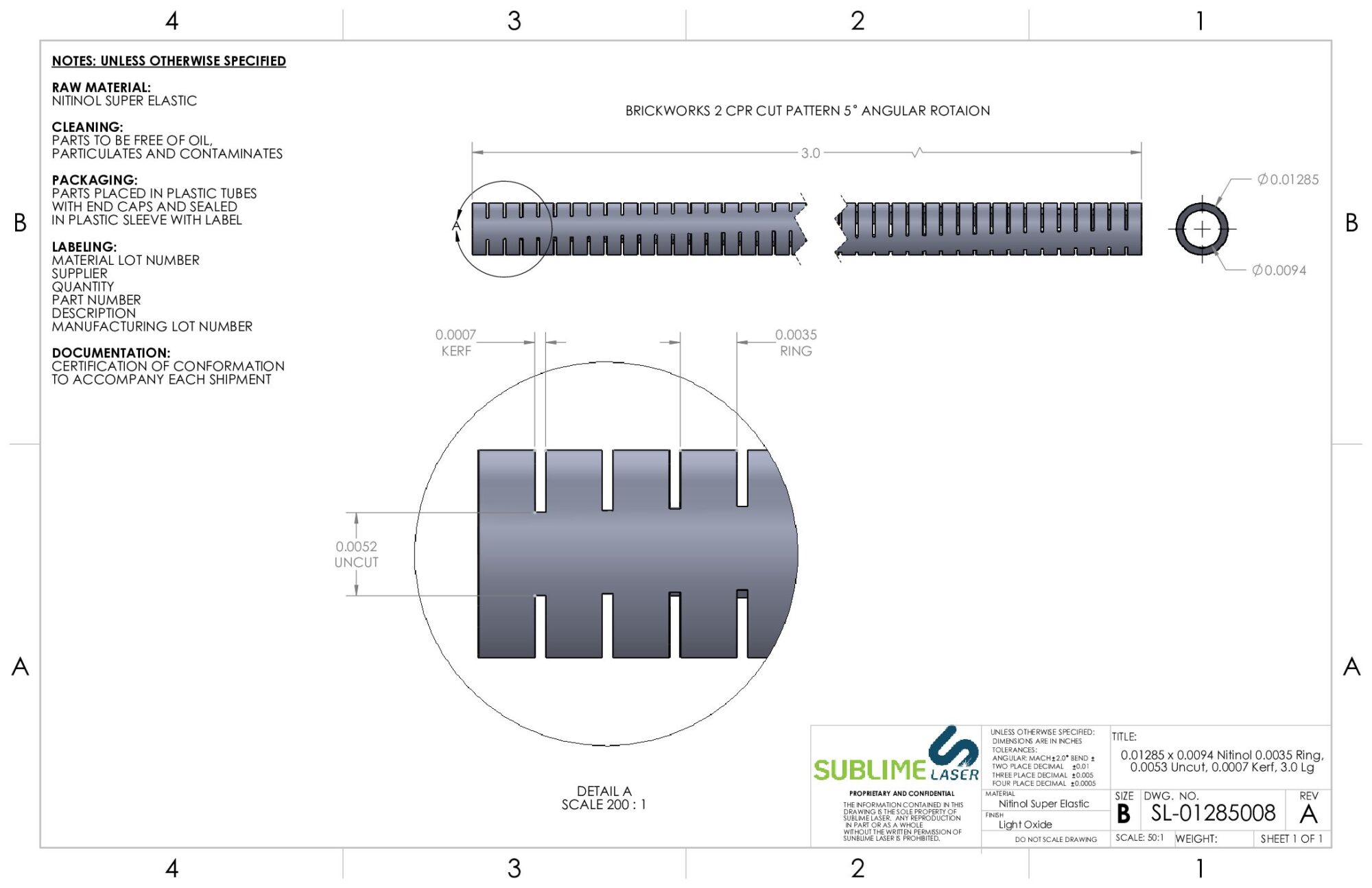

Nitinol Laser Cut Hypotube, 0.01285″ OD, 0.0094″ ID, 2.00″ Length, 0.0035″ Ring Width, 0.0007″ Kerf, 2 CPR
$200.00
3/bag
In-Stock: 9
Ships in 1-2 business days
Product Details
| OD (in) | 0.01285 |
|---|---|
| ID (in) | 0.0094 |
| Wall Thickness (in) | 0.0018 |
| Material | Nitinol |
| Tubing Type | Laser Cut Hypotube |
| Length (in) | 2 |
| Ring Width (in) | 0.0035 |
| Uncut Width (in) | 0.0053 |
| Kerf Width (in) | 0.0007 |
| CPR | 2 |
| Packaging | 3/bag |
| Shipping Dimensions | 12 × 8 × 1 in |
| Shipping Weight | 1 lbs |
Product Description

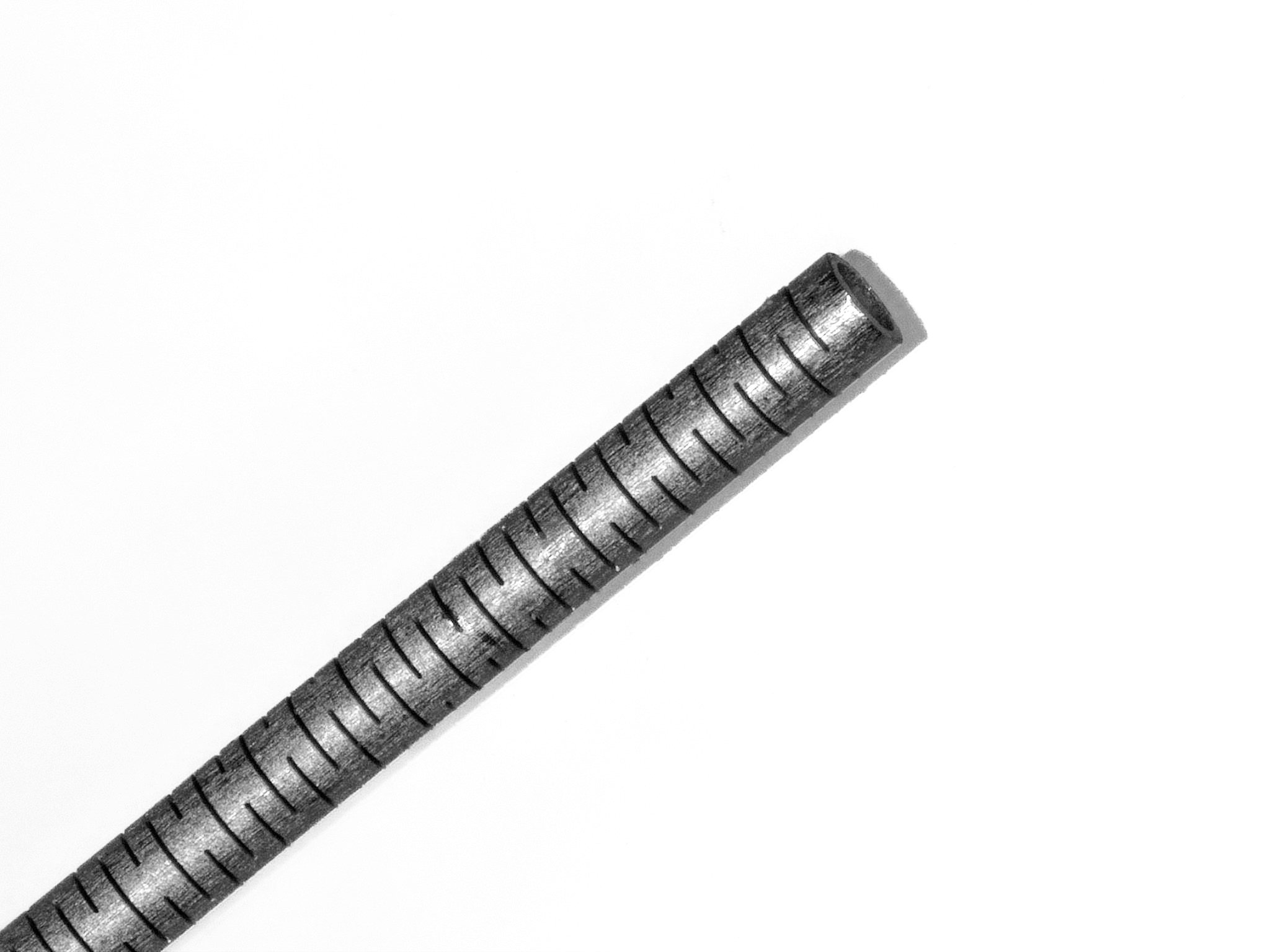

This Nitinol hypotube features a 0.0018″ wall thickness and a 0.0053″ uncut width, offering exceptional flexibility for intricate medical device prototyping. Its laser-cut profile with a 0.0007″ kerf and 0.0035″ ring width makes it ideal for developing advanced catheter shafts, stent delivery systems, or intricate guidewire supports, with the convenience of shipping in just 1-2 business days. The material’s inherent superelasticity and kink resistance ensure reliable performance during bench testing, while its excellent biocompatibility supports the development of next-generation minimally invasive devices.
