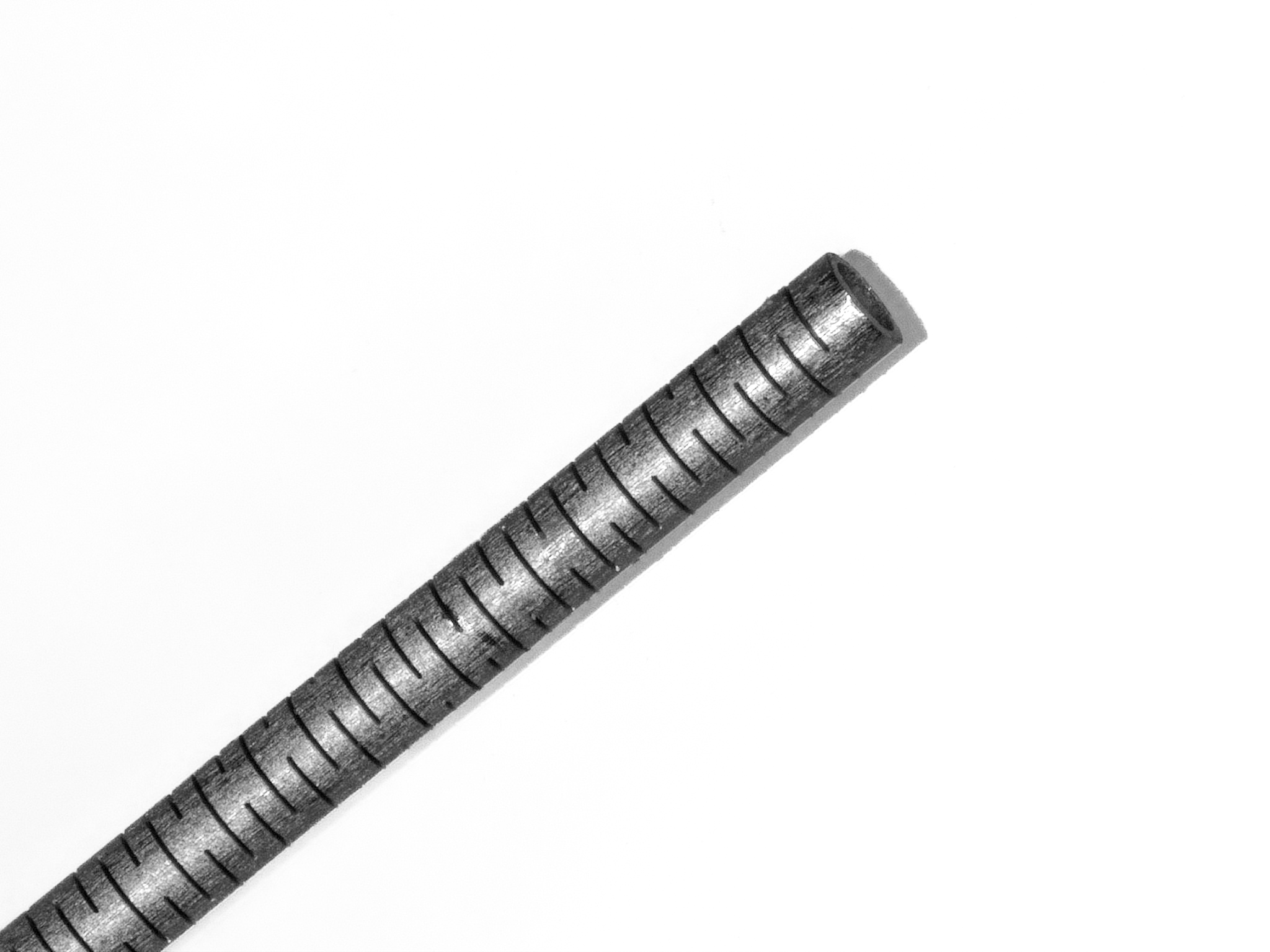

Nitinol Laser Cut Hypotube, 0.025″ OD, 0.02″ ID, 3.00″ Length, 0.0035″ Ring Width, 0.0007″ Kerf, 2 CPR
$200.00
3/bag
In-Stock: 20
Ships in 1-2 business days
Product Details
| OD (in) | 0.025 |
|---|---|
| ID (in) | 0.02 |
| Wall Thickness (in) | 0.0025 |
| Material | Nitinol |
| Tubing Type | Laser Cut Hypotube |
| Length (in) | 3 |
| Ring Width (in) | 0.0035 |
| Uncut Width (in) | 0.0053 |
| Kerf Width (in) | 0.0007 |
| CPR | 2 |
| Packaging | 3/bag |
| Shipping Dimensions | 12 × 8 × 1 in |
| Shipping Weight | 1 lbs |
Product Description
This Nitinol hypotube features a 0.0025″ wall thickness and is laser cut with a 0.0007″ kerf for exceptional detail. Its specific dimensions and lasercut pattern make it ideal for prototyping intricate components like neurovascular catheter shafts or advanced stent delivery systems, and it ships within 1-2 business days. You benefit from Nitinol’s inherent superelasticity and kink resistance, while the precise laser cutting ensures high flexibility and consistent performance in demanding R&D applications.
