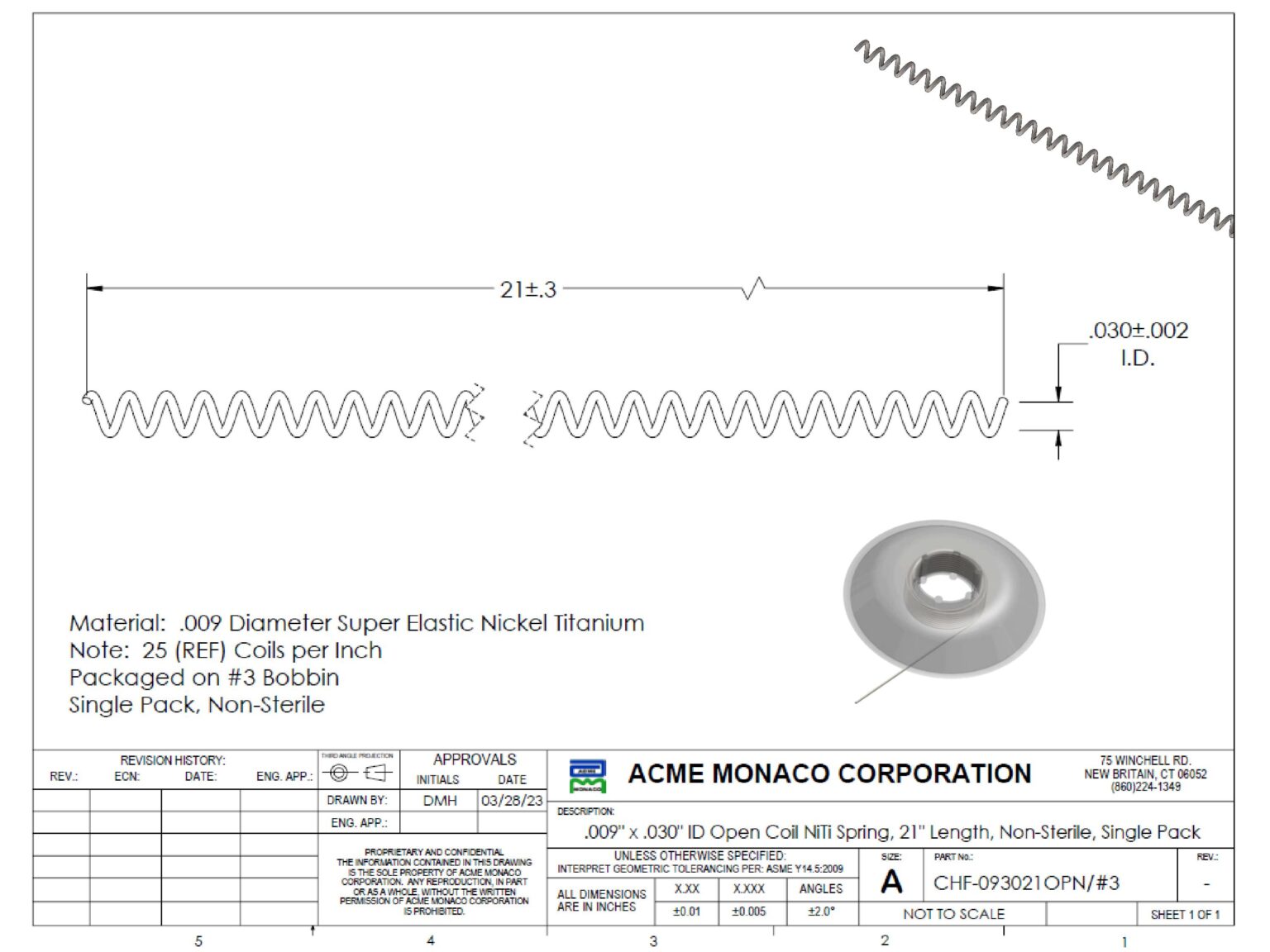

Nitinol Medical Open Coil Spring, 0.009" Wire, 0.030" ID, 21" Length, Superelastic Silver Finish, Non-Sterile
$37.40
1/bag
In-Stock: 58
Ships in 1-2 business days
Product Details
| OD (in) | 0.048 |
|---|---|
| ID (in) | 0.03 |
| Length (in) | 21 |
| Wire Diameter (in) | 0.009 |
| Material | Nitinol |
| Material Detail | Nitinol Superelastic Silver Finish |
| Spring Type | Open Coil Spring |
| Packaging | 1/bag |
| Note | Non-Sterile |
| Shipping Dimensions | 13.25 × 11.5 × 2.375 in |
| Shipping Weight | 1 lbs |
Product Description
Medical Helical Spring Component made from Nickel-Titanium Alloy (Nitinol) offers superelasticity and shape memory properties for demanding medical applications. It features a 0.009-inch wire diameter and 0.030-inch inner diameter in an open coil configuration, providing flexibility and kink resistance. The 21-inch length allows for extended reach in minimally invasive devices, with each unit packaged individually in non-sterile form. This spring maintains consistent performance across temperature variations and cyclic loading, suitable for dynamic medical environments. Its design supports precise force delivery and positional stability in constrained anatomical spaces. Ideal for guidewire tip coils, vascular navigation systems, and endoscopic instrument articulation mechanisms.
