Ultem 1000 Tubing, Quad Lumen, 0.0527" ID, 11.43 Fr, 0.15" OD, 17" Length
$50.00
1/bag
In-Stock: 109
Ships in 1-2 business days
Product Details
| ID (in) | 0.0527 |
|---|---|
| ID Tolerance (in) | 0.004 |
| OD (in) | 0.15 |
| Wall Thickness (in) | 0.04865 |
| French Size | 11.43 |
| Material | Ultem |
| Material Grade | Ultem 1000 |
| Tubing Type | Quad Lumen |
| Length (in) | 17 |
| Color | Clear/Natural |
| Packaging | 1/bag |
| Shipping Dimensions | 57.25 × 3 × 3 in |
| Shipping Weight | 1.5 lbs |
Product Description

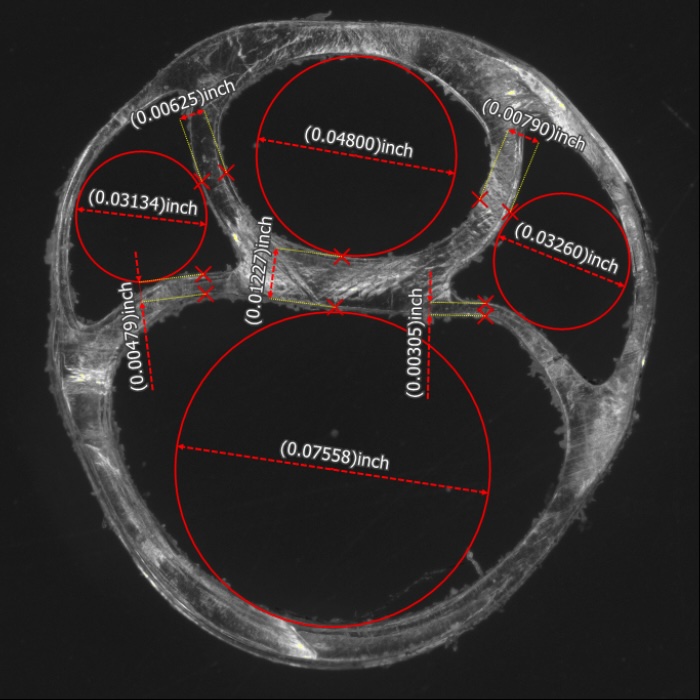

Quad Lumen
Material: Ultem 1000, Natural
Small Lumen = 0.0527″ +/- 0.004″
Bottom Lumen ID Height = 0.0763″ +/- 0.002″
Side Lumens = 0.030″ Min Circular Clearance
OD = 0.150″ Ref
Top/Bottom Wall = 0.0074″ +/- 0.0025″
Center Septum = 0.010″ Min
Side Septum x4 = 0.003″ Min
Ovality = 0.015″ Max
Length = 17″ Min
This medical grade polymer tubing features a quad lumen design, ideal for multi-channel fluid transfer or catheter prototyping. Crafted from Ultem 1000, it offers excellent chemical resistance and durability for demanding R&D applications. The clear/natural color allows for visual monitoring of fluid flow, while the tight tolerance ensures reliable performance in OEM assemblies. Each tube is individually bagged for convenience and ships quickly to support rapid development cycles.
