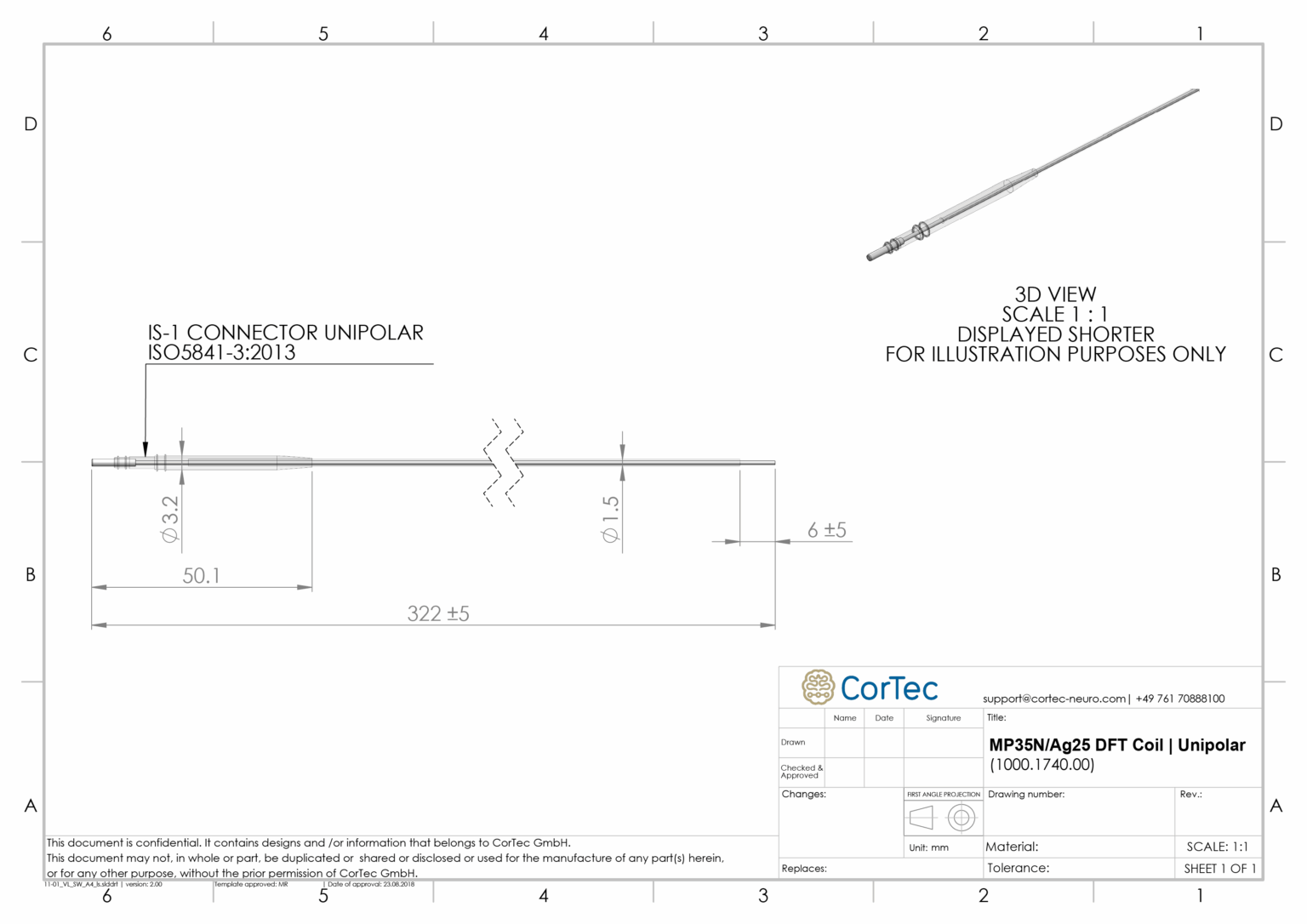

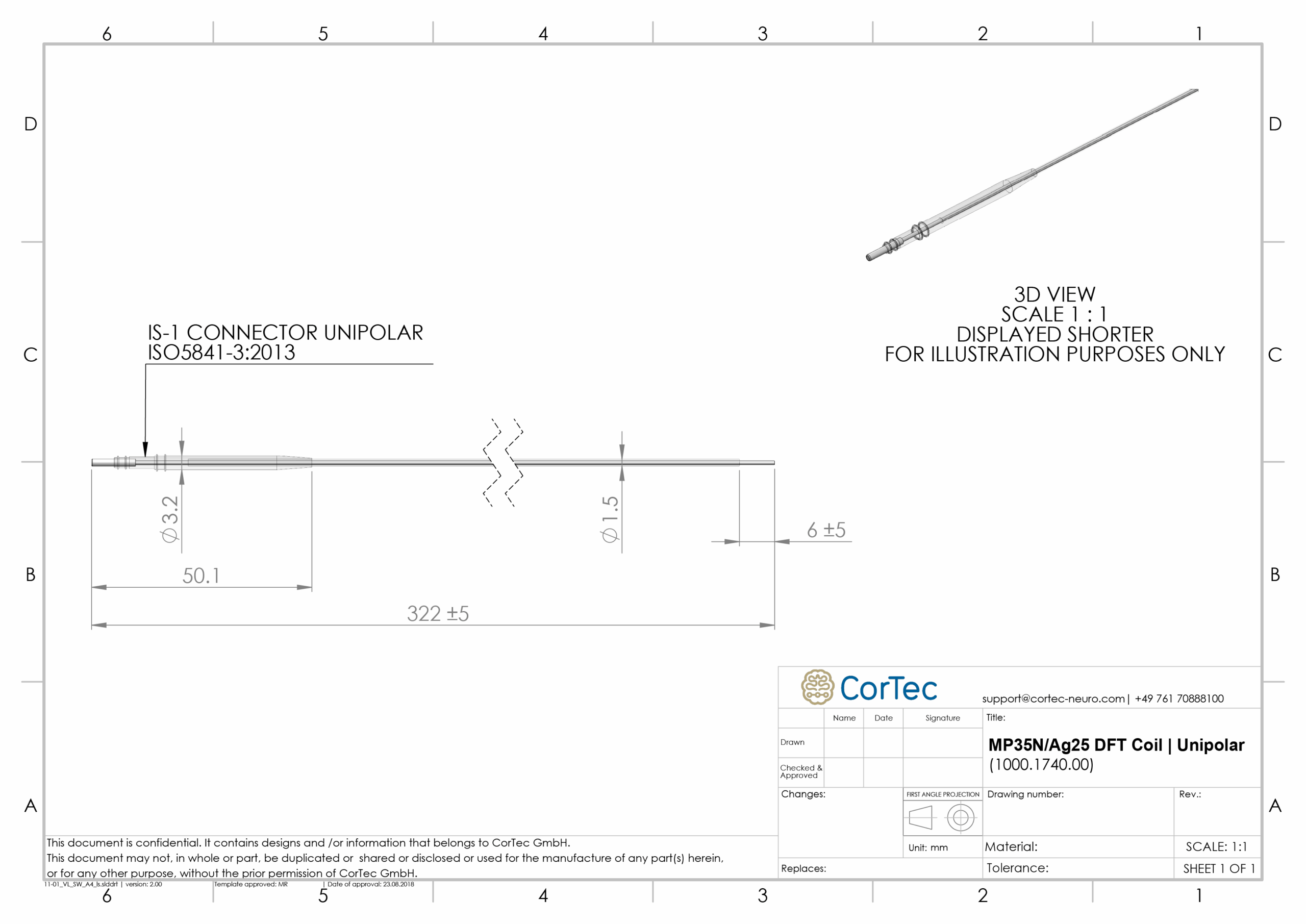

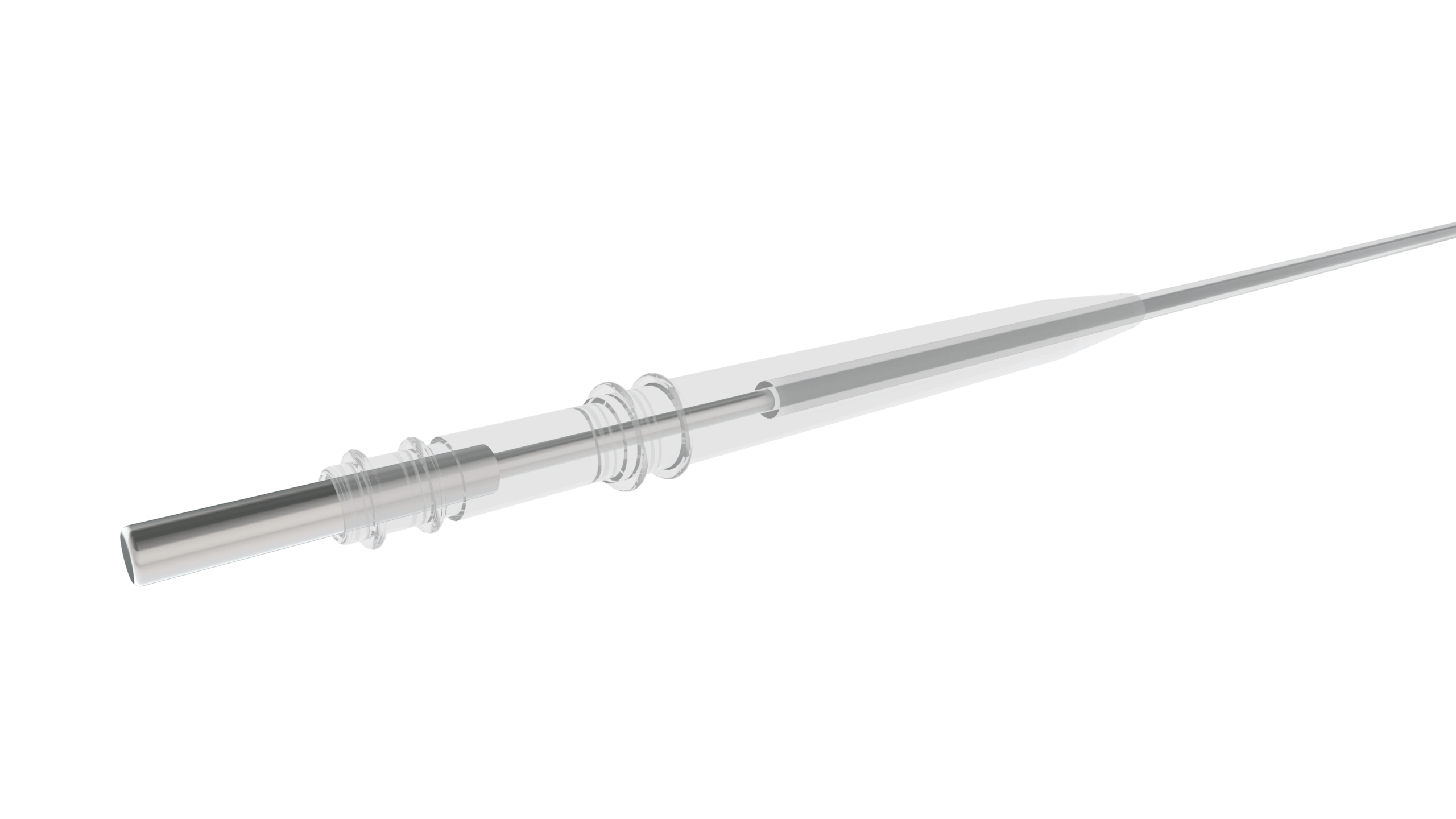

DFT MP35N/Silver IS-1 Connector, 322 mm Length, 1.5 mm OD, Coiled Wire Lead Body, Unipolar Contacts
$865.00
1/box
In-Stock: 10
Ships in 1-2 business days
Product Details
| Electrode Type | IS-1 Connector |
|---|---|
| Connectors & Fittings Type | IS-1 Connector |
| Lead Body Cable Type | Coiled Wire |
| Material | DFT MP35N/Ag |
| OD Lead Body (mm) | 1.5 |
| Number of Contacts | Unipolar |
| Length (mm) | 322 |
| Connection | IS-1 |
| Packaging | 1/box |
| Note | R&D Use Only, Not For Human Use |
| Application | Medical device implants and lectrode lead connection |
| Shipping Dimensions | 10 × 6 × 2 in |
| Shipping Weight | 1 lbs |
Product Description
This premium medical electrode features an in-line connector design with a 322 mm cable length for optimal positioning flexibility in research applications. Constructed with high-purity platinum-iridium and stainless steel materials, it delivers exceptional signal clarity and low impedance for superior trace quality in electrophysiological measurements. The advanced hydrogel adhesive ensures secure long-term wear while remaining gentle on sensitive skin during extended monitoring sessions. Ideal for R&D applications including ECG, EEG, EMG, and TENS studies in neurology and critical care research environments. Each unit is packaged individually in boxes for convenient laboratory use and precise experimental setups. The connector design facilitates reliable integration with various research instrumentation systems.
