EZ Motor Controller only, no motor bundle
$12,495.00
Sold individually
In-Stock: 1
Ships in 1-2 business days
Product Details
| Tools Type | Motor Controller |
|---|---|
| Motor Type | Motor Not Included – Only Controller |
| Power | Standard 120V |
| Control | 4 axes of motion |
| Packaging | Sold individually |
| Shipping Dimensions | 25 × 20 × 16 in |
| Shipping Weight | 16 lbs |
Product Description
EZ Motor controllers are the easiest and fastest way to automate motor-driven motion. Our pre-integrated hardware means no wiring or sourcing components such as power supplies, terminal blocks, or motor drives. The drag-and-drop software interface requires no programming experience—so simple a 4th grader can use it, yet powerful enough for industrial tasks. Just attach your motors & encoders using the plug-and-play connectors, and in less than 20 minutes you’ll be up to speed and running your first automated motion sequence.
Designed primarily for R&D and light production environments, the EZ Motor controller includes everything needed to start motor-powered motion in minutes. Use any PC to connect to the controller. The base configuration includes the following:

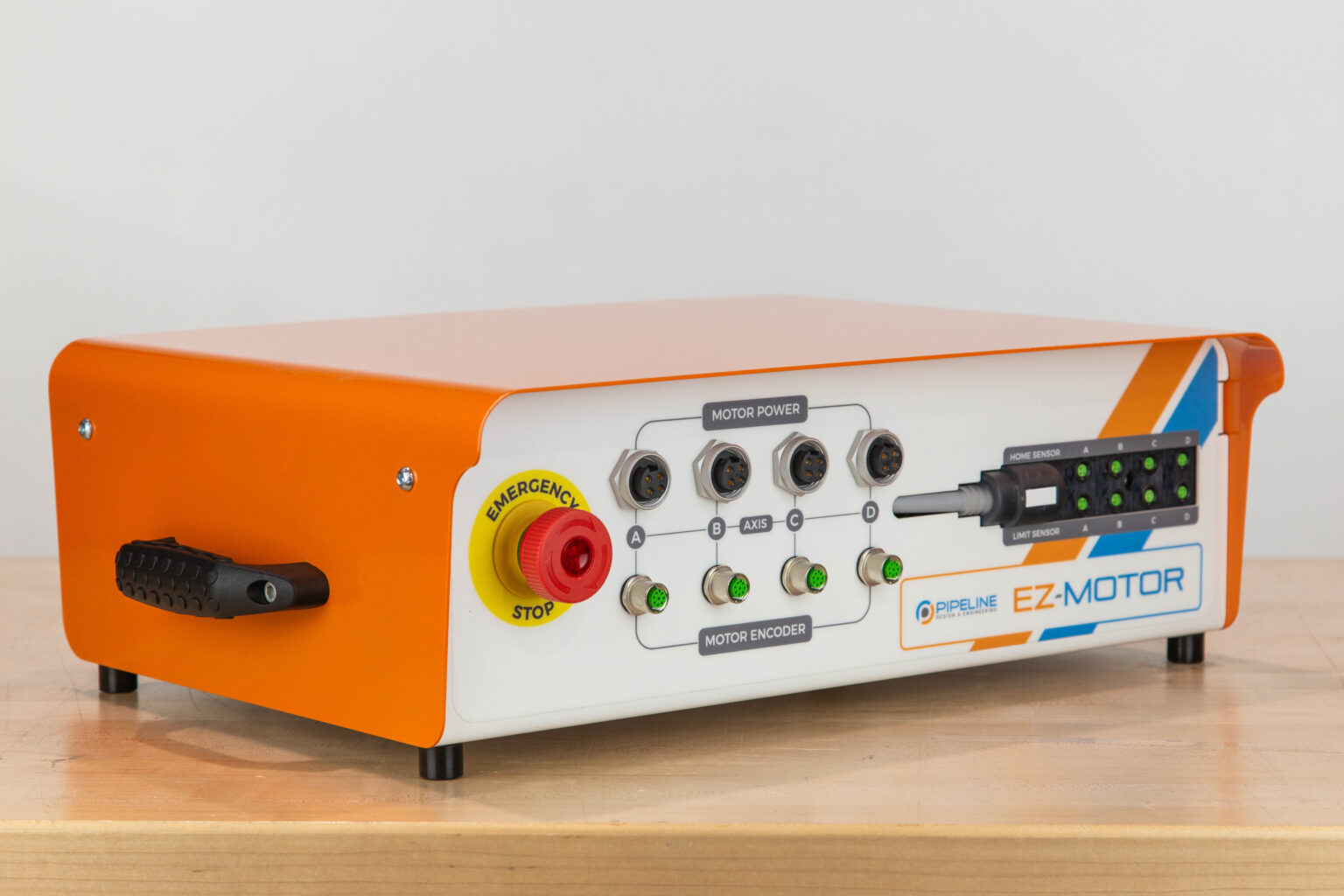

- Integrated Controls Enclosure: Motion controller, power supply, and all necessary components already pre-integrated

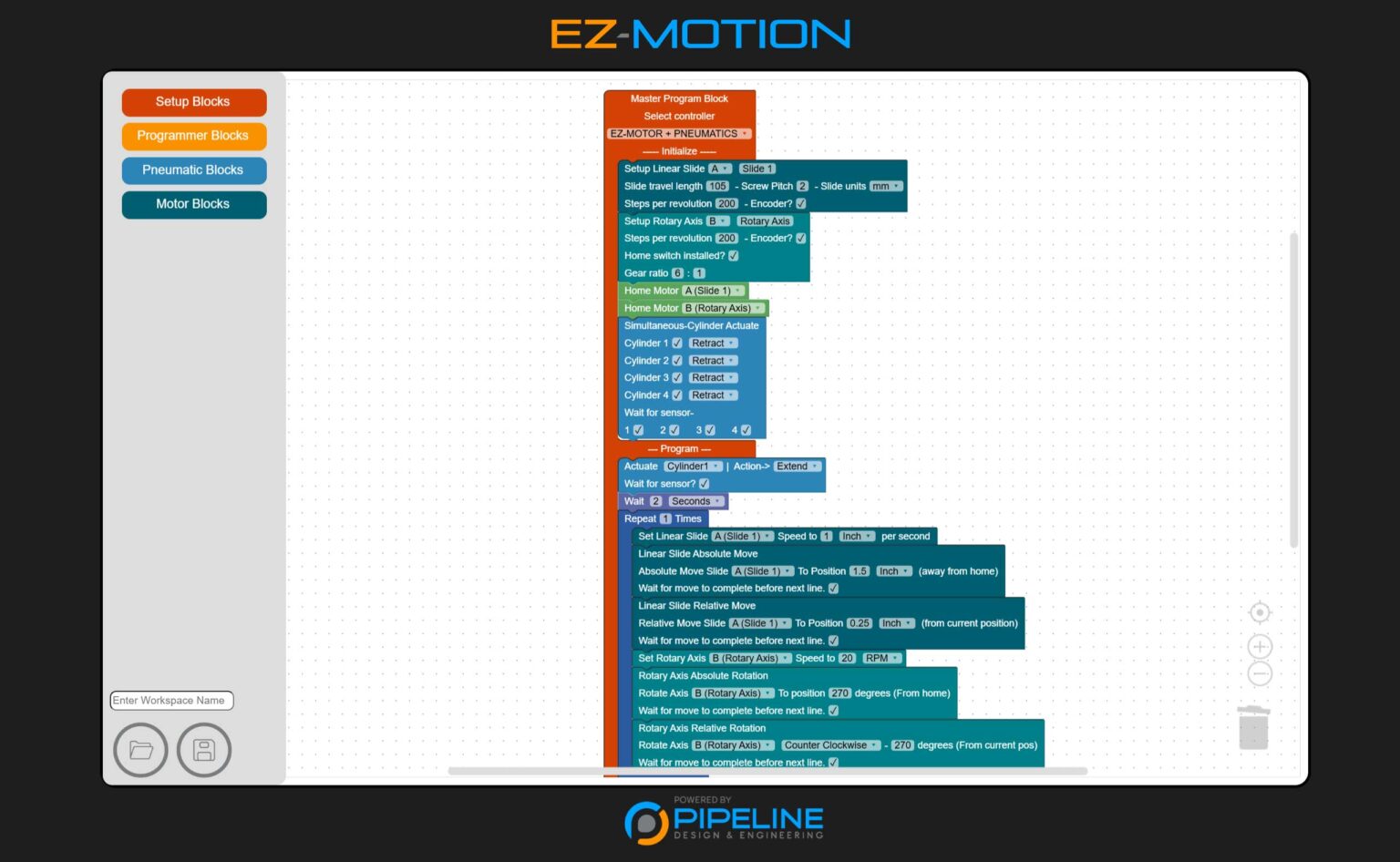

- EZ Programmer Software: No-code visual programming for creating sophisticated automated motion quickly and easily
Features:
- Control of 4 axes of motion
- Programming capabilities include timers, sequences, if/then logic, pauses, move absolute, move relative, support for linear slides, motor homing, & more
- Real-Time Display (via PC) shows cycle count, start time, elapsed time, and tools for troubleshooting
- Emergency Off Button – Performs controlled stop of all axes to stop all motion
- Plug and play setup; no assembly required
Technical Specifications:
- Motor Type: Stepper Motor
- Home/Limit Switch Inputs: Supports 8 digital PNP (or Reed Switch) limit switch Inputs (configured with M8 3-pin male connectors) for use triggering stops and defining home positions
- Power: Standard 120V
- Motor Drive Microsteps: 64 (effective 0.028 deg rotational resolution with 200-step (1.8°) motor)
- Motor voltage: 24V DC
- I/O: 4 Digital Out (Sourcing), 4 Digital In on M12 Connector, 24VDC
- Motor connectors: 7/8” 4-pin (power) and 8-pin M12 (encoder)
- Power: Standard 120V (240W Max Power Consumption)
- Size:3” (incl. handles) or 18.9” (enclosure) long x 14.0” deep x 6.6” tall
- Weight:2 lbs (enclosure only, no actuators or cables)
Motor Requirements (if providing your own motor)
- Max output from controller to motor: 3.0 A
- Minimum load inductance: 0.5 mH
- Stepper Motor Type: Bipolar 2 phase
- Maximum frequency at which drive will command position changes to motor: 6 MHz
- On special request controller can be configured to run motors on 20-60v DC to meet higher load driving requirements.
Applications:
The EZ Motor controller is ideal for:
- Life cycle testing
- Developing new manufacturing process
- Proof of concept or prototype automation
- R&D activities
- Design verification & validation
- Automating manual motion tasks and/or fixtures
- Assembly processes
- Other innovative uses by engineering, R&D, or manufacturing teams
Get started with the EZ Motor today and streamline your motorized motion control with ease.
FAQ

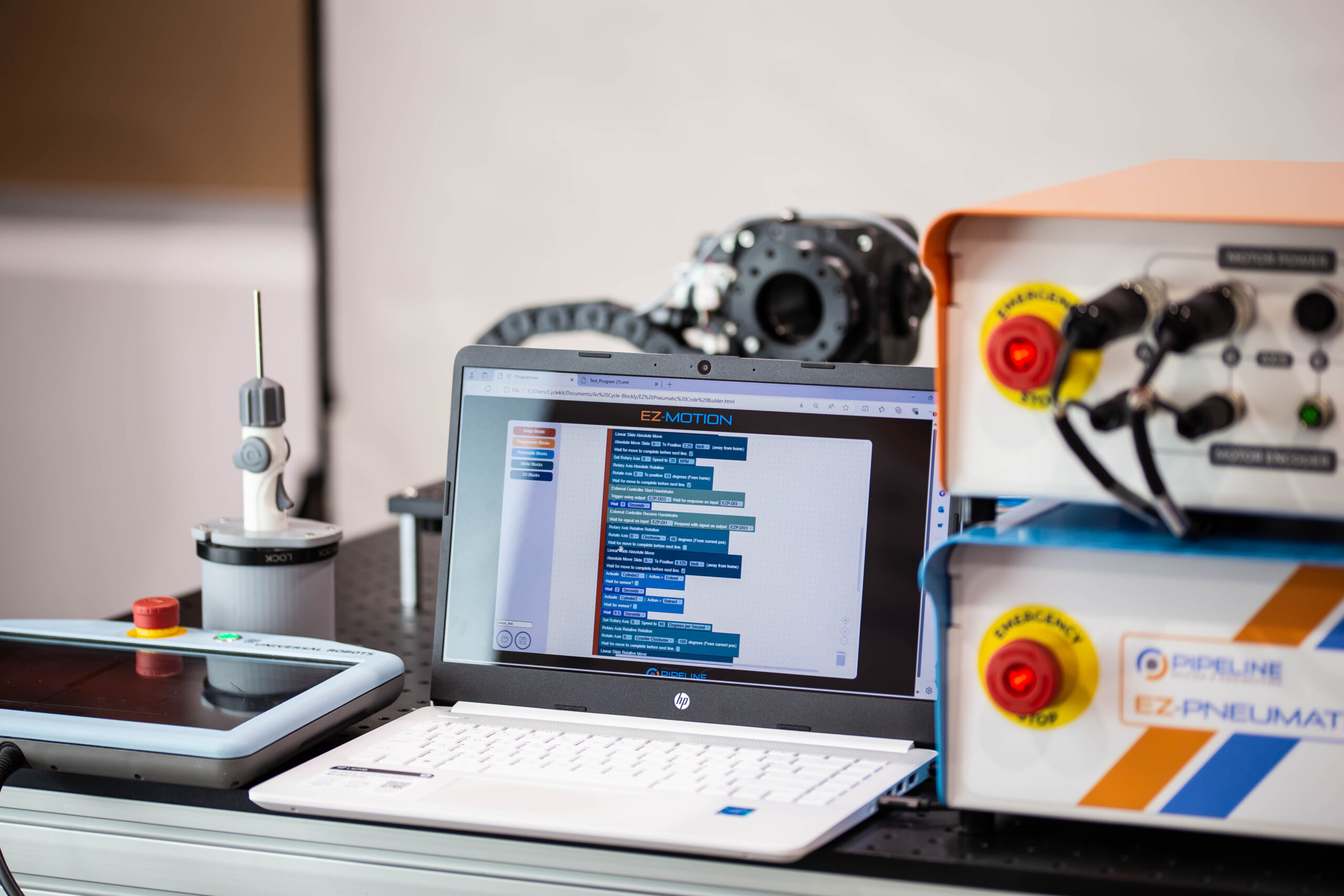

- Is the EZ Motor controller compatible with the EZ Pneumatics controller Yes, the two products work seamlessly together via an ethernet connection so you can control motors and pneumatics at the same time.
- What I/O are provided 4 digital inputs and 4 digital outputs (Via 8-pin M12 connector)
- Is EZ Motion compatible with Mac OS At this time EZ Motion is only compatible with Windows 10 PCs and newer.
- Where can I find training resources Training videos are available here. Note that you will need a free account on The Wave to access this page.
*Note: motors are not included in the base package
