Threaded Insert Installer

Product Description

Never worry about crooked, incorrectly installed threaded inserts again with Pipeline’s new Threaded Insert Installer. Inserts are installed seamlessly with minimal effort saving time, cost and frustration.

Quick and easy tip change with included tool
Ergonomic handle requires minimal force from user
Tips can be placed in silicone storage case without waiting for cool-down
Adjustable stroke stops for consistent installation and retraction heights

Technical Specifications:

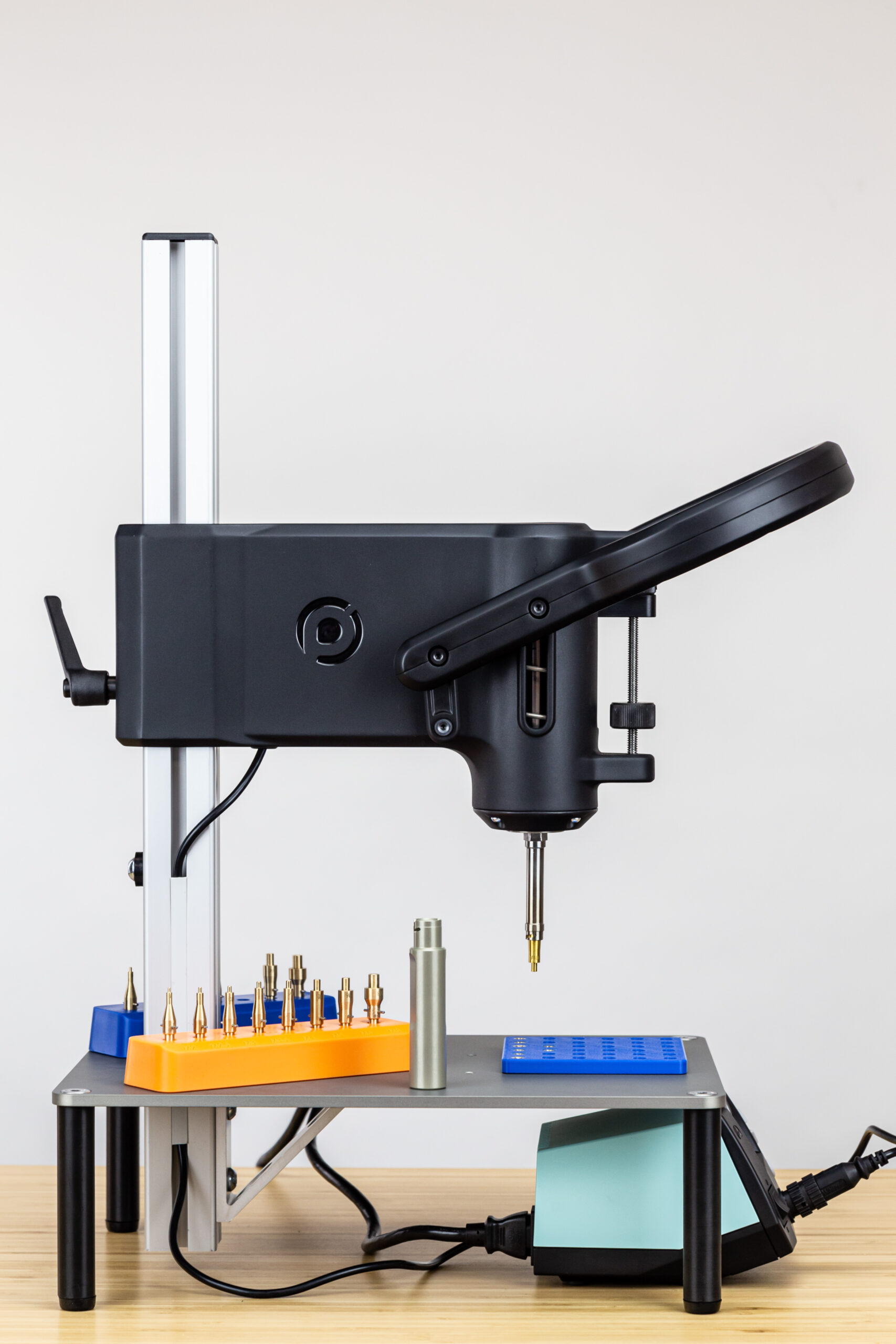

6.8″ throat
0-8″ (adjustable) height
0-2.5″ (adjustable) stroke

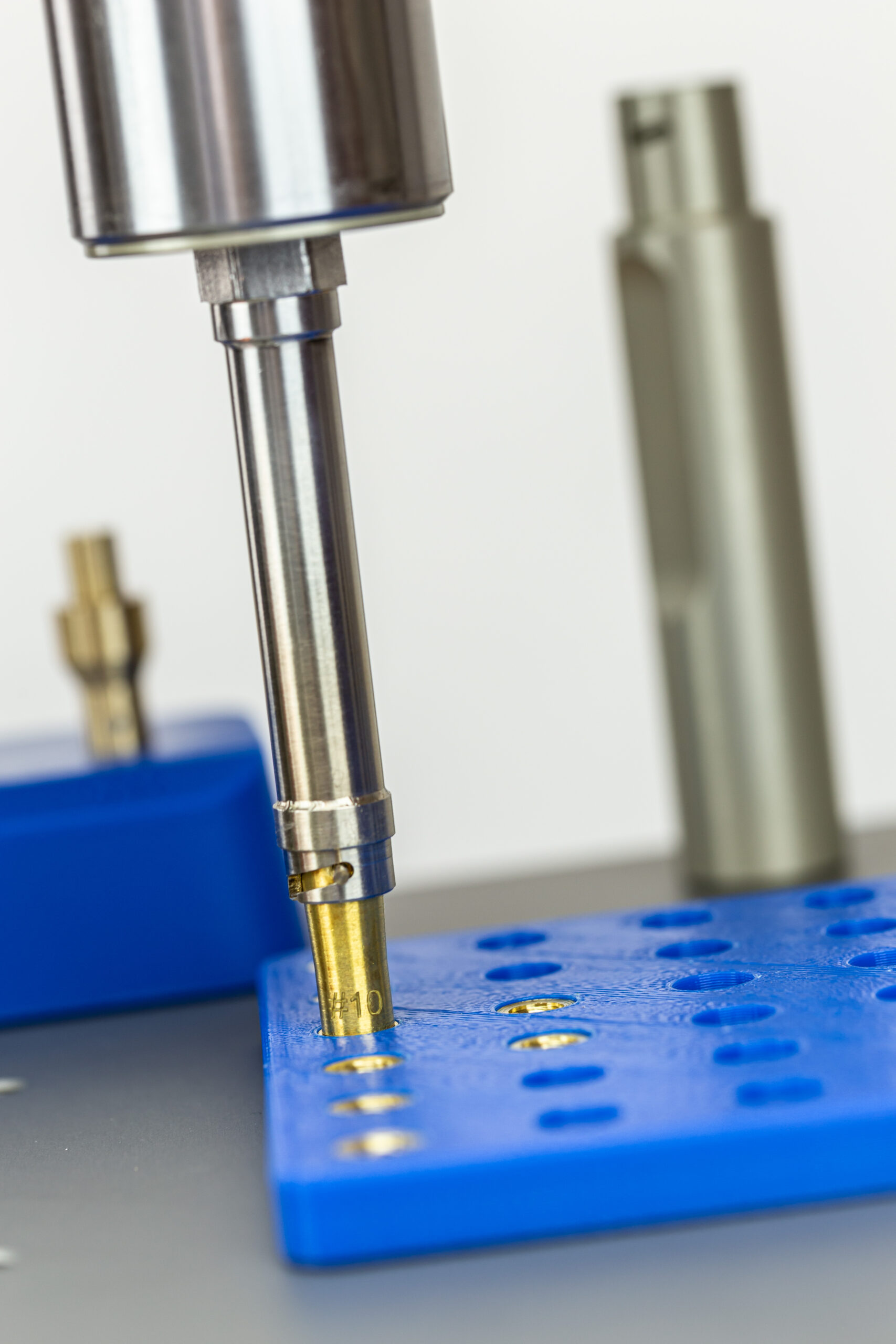

Quick tip change (even while hot) to accommodate standard insert sizes
Ambidextrous operation

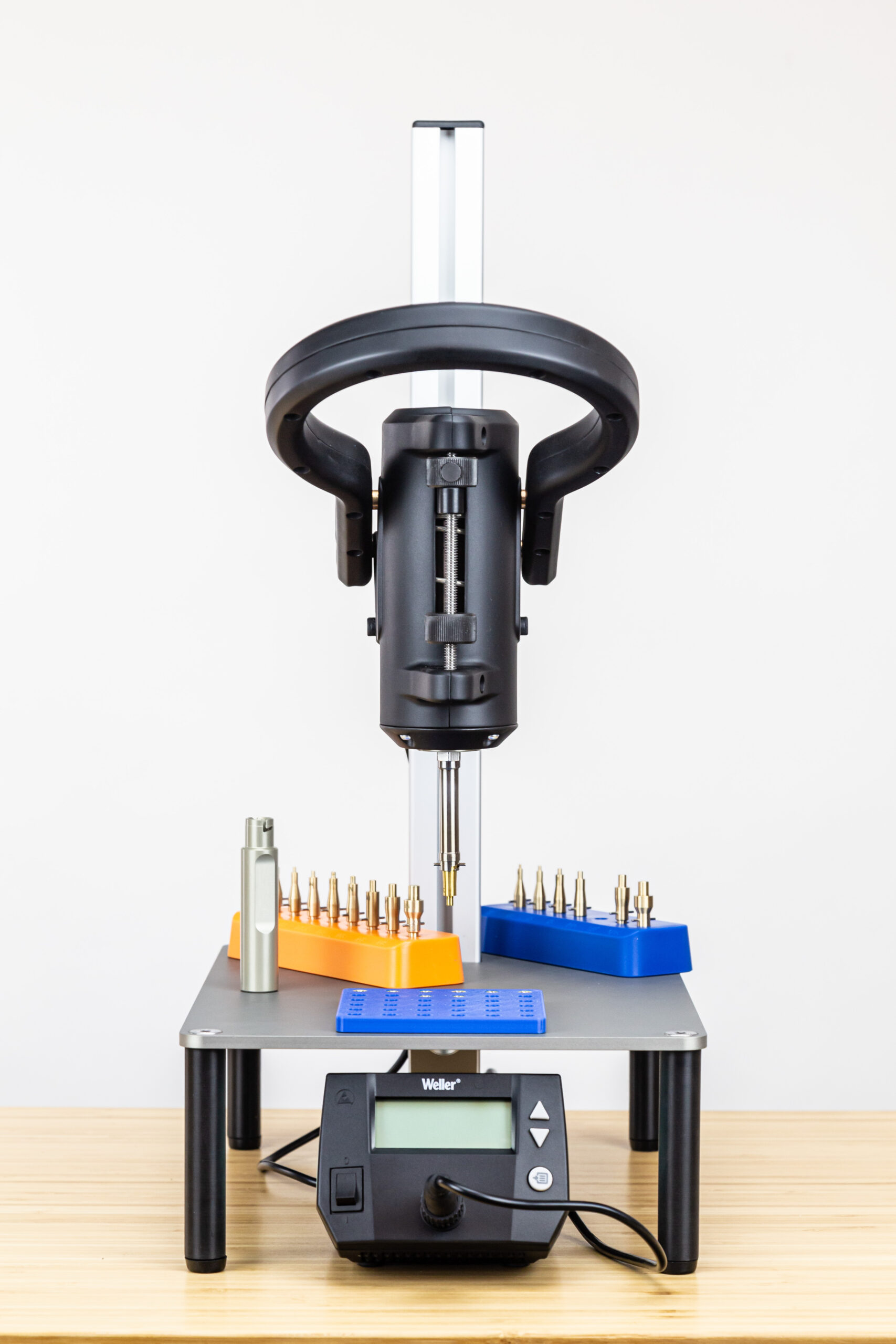

Weller WE1010 control unit

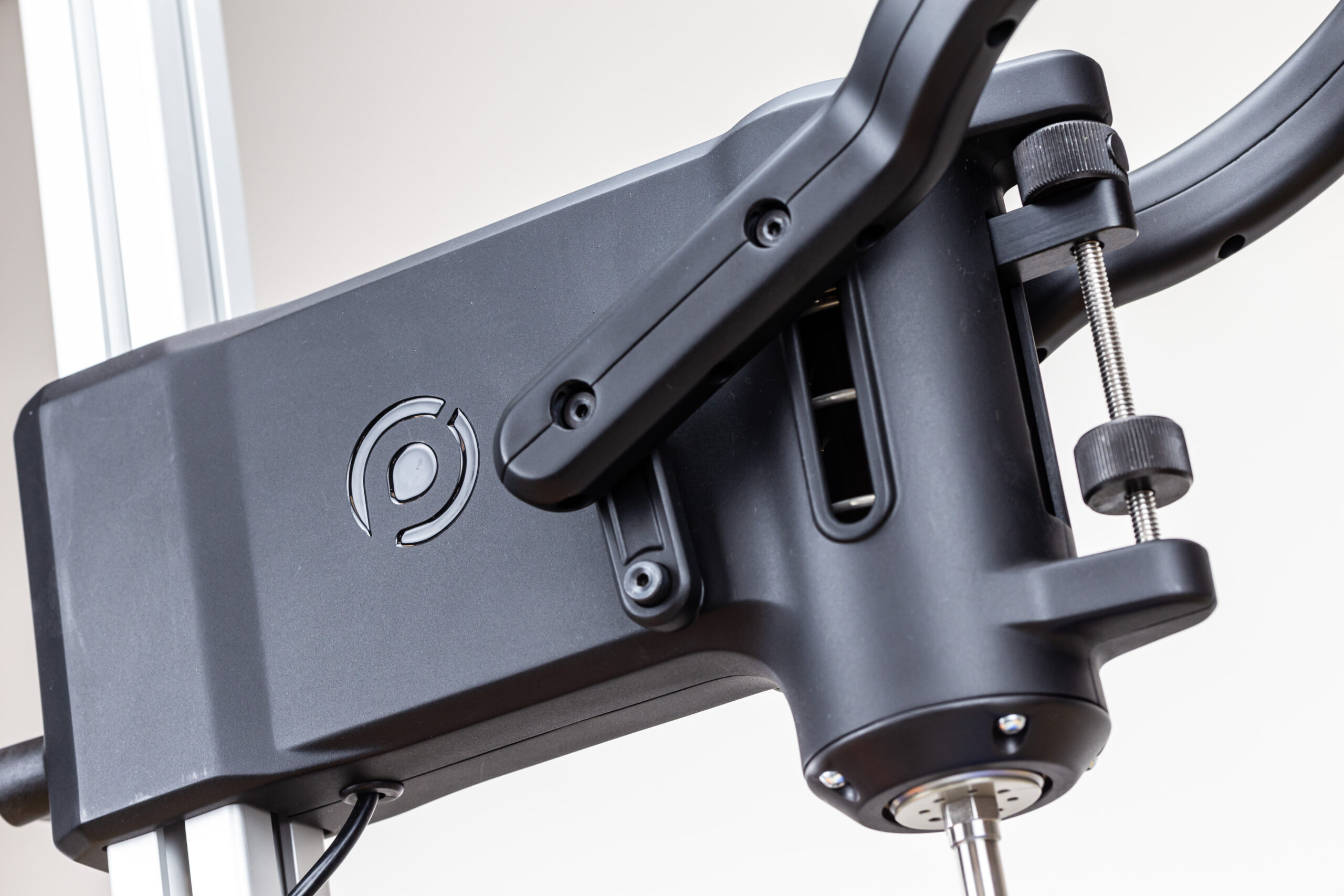

Quick adjust top and bottom stops for setting consistent insertion depth and retraction height
Specifically designed for use with common 3D printed & thermoplastic materials
Works with common metric and inch sizes:

M2, M2.5, M3, M3.5, M4, M5, M6, M8
2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18

Note that the Threaded Insert Installer will work with most heat set threaded inserts, and for best results we recommend Dodge Ultrasert II.

We also provide a comprehensive set of Solidworks Design Library threaded insert hole features that can be drag-and-dropped into your model  to automatically create the manufacturer’s recommended hole profile to accept the threaded inserts, making the process of preparing your part even easier. Finally, the user manual can be downloaded here.
