Vertical Reflow Machine with 12mm Nozzle and standard Length

$9,500.00

Sold individually

In-Stock: 29

Ships in 1-2 business days

Request custom quote
Need a customization of this product?


Ships From: Miami, FL, United States

Sold By: Pilot Line

Item Number: PLT73647
Part Number: RVT-12

Categories: ,

or Create an account to access qualified medical component suppliers and start a seamless dialogue to speed up your procurement process!

Product Details
Nozzle Size

12 mm

Machine Length

Standard Length

Shipping Dimensions 60 × 24 × 12 in
Shipping Weight 52 lbs
Product Description

The Pilot Line Catheter Reflow and Lamination Machine (12 mm nozzle, standard length) reflows catheter shafts up to 170 cm long for prototyping and pilot production. A proprietary 360 degree convection nozzle delivers PID-controlled hot air for even heating along the shaft.

It stands 7 ft tall on about 2 ft x 2 ft of floor space and plugs into a standard 120 VAC outlet, with no compressed air or special utilities required.

TYPICAL APPLICATIONS
• Multilayer Shaft Construction: Bond liner, reinforcement, and jacket layers into a finished catheter shaft.
• Delivery Catheter Builds: Build long delivery-catheter shafts up to 170 cm.
• Reflow Process Development: Dial in temperature and speed along the catheter shaft, to get optimal reflow for every material.
• Pilot Production Builds: Run small in-house lots for evaluations, builds, or early supply.

KEY FEATURES
• Programmable Temperature: Set process temperature up to 300 °C with closed-loop PID control.

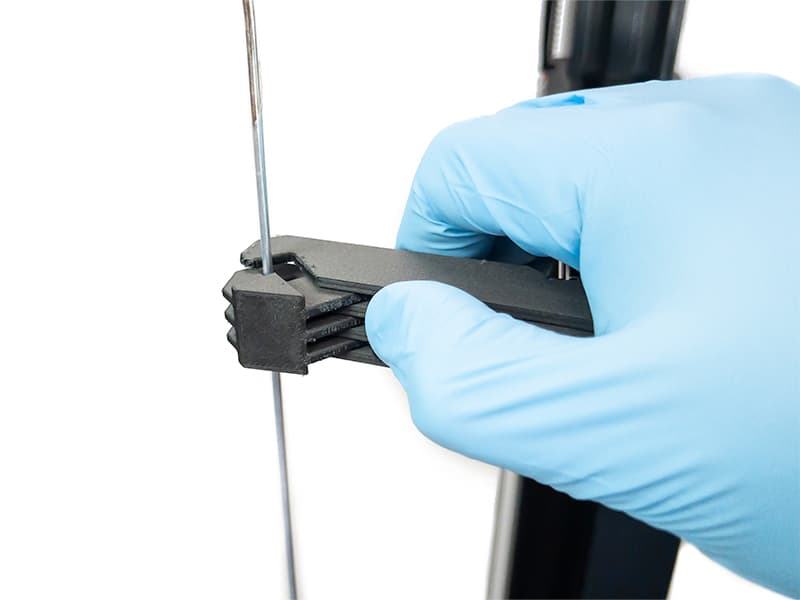

• Independent Centering Clamps: A pair of independently programmable clamps center the device in the nozzle for even heat distribution.
• Programmable Process Zones: Define up to 20 zones with position, speed, and temperature for each section of the shaft.
• Operator Lockout Mode: Lock process parameters so operators run a start-stop workflow without editing the recipe.
• Automatic Heater Cycle: The heater starts at the beginning of a cycle and shuts down at the end to cut idle heat and power use.
• Interchangeable Nozzles: Nozzles can be purchased separately to change size later.

SPECIFICATIONS
• Heat Range: Ambient to 300 °C standard; up to 500 °C available on request
• Reflow Length (Standard): 170 cm
• Catheter Size (12 mm Nozzle): 20 Fr max
• Programmable Zones: 20
• Speed Range: 3-3000 mm/min
• Machine Height (Standard): 7′
• Clamp Height (Standard): 81″-60″
• Power Requirements: 120 VAC, 50/60 Hz, 13 A (1600 W)

Made in Miami, Florida, USA.
